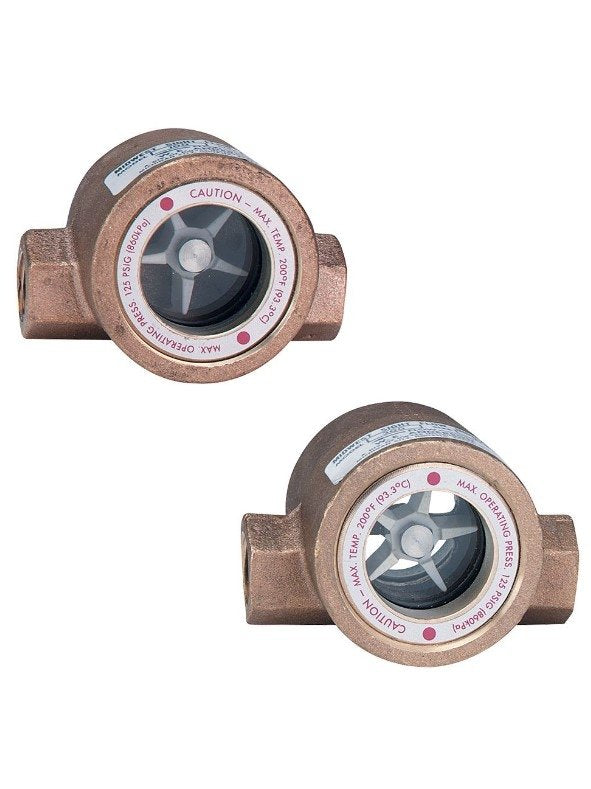

Dwyer SFI-300SS-3/8 | Sight Flow Indicator | 3/8" Body, Double Window, Impeller
Part Number : SFI-300SS-3/8
The Dwyer SFI-300SS-3/8 is a 3/8" threaded sight flow indicator with a double viewing window with a rotating impeller, letting operators see flow in the line. For servicing, the SFI-300SS-3/8 window can be removed and parts replaced.
- 3/8" body measuring 3.063" (78 mm) L x 2.250" (57 mm) D x 2.125" (54 mm) H (SFI-300SS-3/8)
- SFI-300SS-3/8 weight: 1.7 lb (0.8 kg)
- Rated to 125 psig (8.62 bar) on the SFI-300SS-3/8, 150 psig (10.34 bar) on MP models
- SFI-300SS-3/8 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-300SS-3/8: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket, ABS or 316 SS impeller
Free UAE shipping available
For pricing, please contact our experts.
