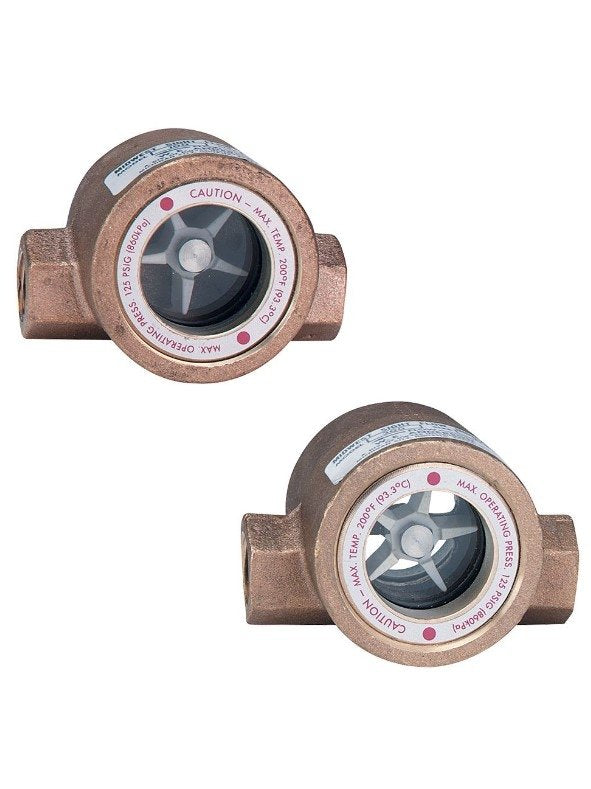

Dwyer SFI-350-1/4 | Sight Flow Indicator | 1/4" Body, Double Window, No Indicator
Part Number : SFI-350-1/4
The Dwyer SFI-350-1/4 is a 1/4" threaded sight flow indicator with a double viewing window with no moving indicator, letting operators see flow in the line. For servicing, the SFI-350-1/4 window can be removed and parts replaced.
- Dimensions of the 1/4" size: 3.063" (78 mm) long, 2.250" (57 mm) deep, 2.125" (54 mm) high (SFI-350-1/4)
- SFI-350-1/4 weight: 1.7 lb (0.8 kg)
- Rated to 125 psig (8.62 bar) on the SFI-350-1/4, 150 psig (10.34 bar) on MP models
- SFI-350-1/4 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-350-1/4: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket
