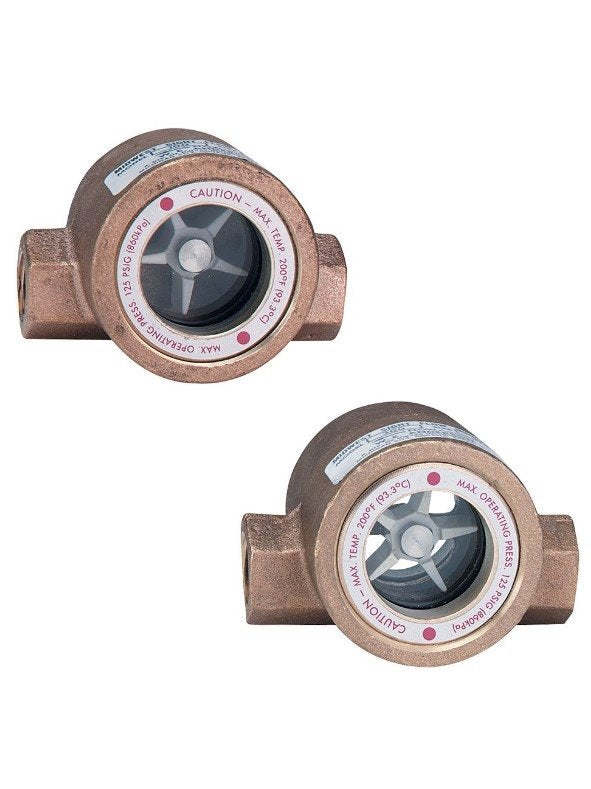

Dwyer SFI-350-1 | Sight Flow Indicator | 1" Body, Double Window, No Indicator
Part Number : SFI-350-1
The Dwyer SFI-350-1 is a 1" threaded sight flow indicator with a double viewing window with no moving indicator, letting operators see flow in the line. A removable window on the SFI-350-1 simplifies cleaning and component changes.
- 1" body measuring 4.375" (111 mm) L x 3.125" (79 mm) D x 2.563" (65 mm) H (SFI-350-1)
- SFI-350-1 weight: 3.0 lb (1.4 kg)
- Rated to 125 psig (8.62 bar) on the SFI-350-1, 150 psig (10.34 bar) on MP models
- SFI-350-1 temperature limit 200°F (93°C); 120°F (48°C) with W2 option, 170°F (77°C) with I1 option
- Wetted parts for SFI-350-1: tempered glass window, bronze or 316 SS body (series options), Buna-N, fluoroelastomer or PTFE gasket
Free UAE shipping available
For pricing, please contact our experts.
