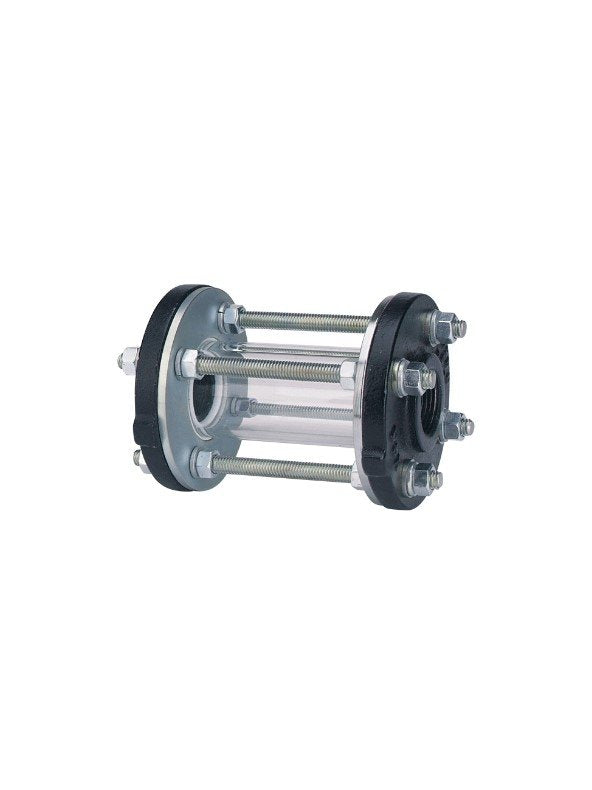

Dwyer SFI-400SS-1 | Tube Sight Flow Indicator | 1" Body, 2.000" Viewing Dia.
Part Number : SFI-400SS-1
Using a borosilicate glass tube, the Dwyer SFI-400SS-1 1" sight flow indicator shows flow from any viewing angle. Series 400 bodies, as on the SFI-400SS-1, come in cast iron or 316 SS, with threaded or ANSI flanged process connections.
- 1" body, 4.250" (108 mm) flange diameter (SFI-400SS-1)
- Viewing diameter 2.000" (51 mm); overall length 5.625" (143 mm) on the SFI-400SS-1
- SFI-400SS-1 weight: 6.2 lb (2.8 kg)
- The 1" SFI-400SS-1 is rated to 50 psig (3.45 bar) and 200°F (93°C)
- Wetted parts for SFI-400SS-1: borosilicate tube, cast iron or 316 SS body (series options), PTFE gasket
