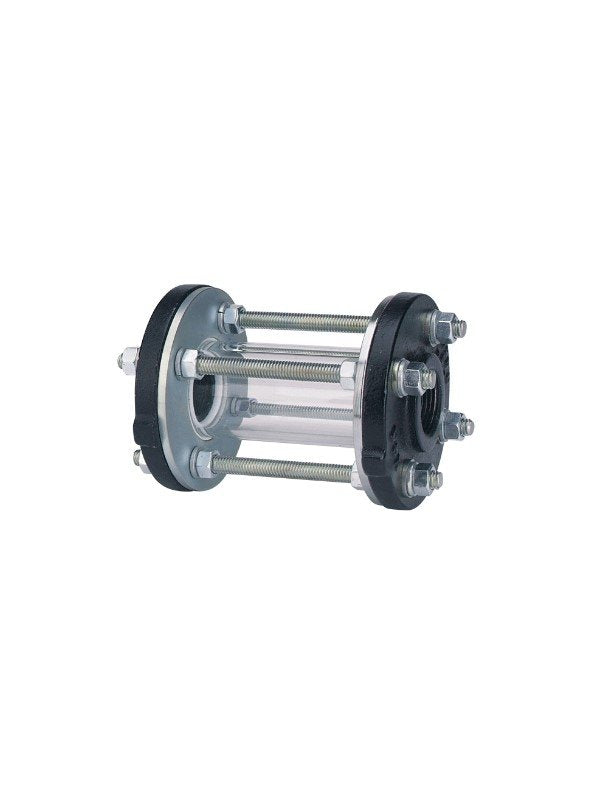

Dwyer SFI-400SS-2 | Tube Sight Flow Indicator | 2" Body, 3.000" Viewing Dia.
Part Number : SFI-400SS-2
The Dwyer SFI-400SS-2 is a 2" tube-style sight flow indicator whose glass tube lets flow be seen from any angle. The 400 Series, which includes the SFI-400SS-2, is offered with cast iron or 316 SS bodies and threaded or ANSI flanged connections.
- 2" body, 6.000" (152 mm) flange diameter (SFI-400SS-2)
- Viewing diameter 3.000" (76 mm); overall length 6.125" (156 mm) on the SFI-400SS-2
- SFI-400SS-2 weight: 13 lb (6.0 kg)
- The 2" SFI-400SS-2 is rated to 50 psig (3.45 bar) and 200°F (93°C)
- Wetted parts for SFI-400SS-2: borosilicate tube, cast iron or 316 SS body (series options), PTFE gasket
