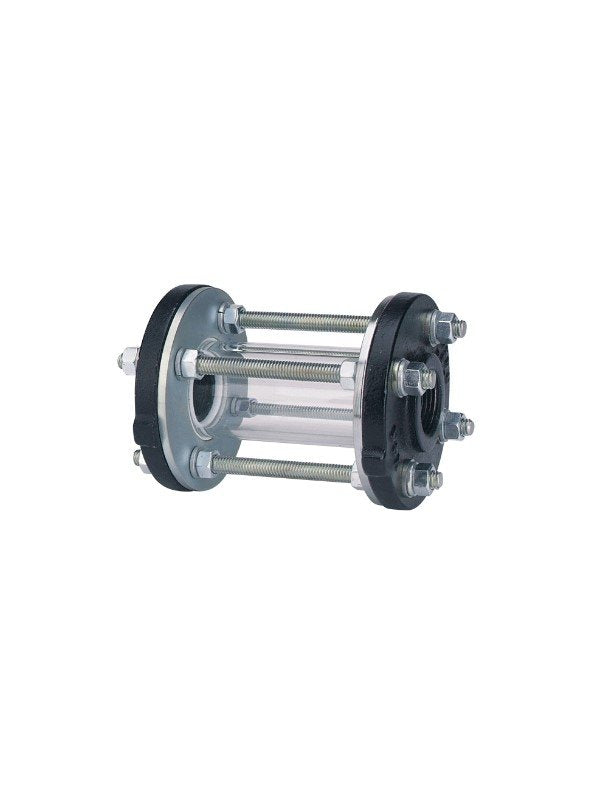

Dwyer SFI-400SS-3/4 | Tube Sight Flow Indicator | 3/4" Body, 1.750" Viewing Dia.
Part Number : SFI-400SS-3/4
Dwyer SFI-400SS-3/4 is a 3/4" sight flow indicator with tube-style viewing, so flow can be checked from any direction. Series 400 bodies, as on the SFI-400SS-3/4, come in cast iron or 316 SS, with threaded or ANSI flanged process connections.
- 3/4" body, 3.875" (98 mm) flange diameter (SFI-400SS-3/4)
- Viewing diameter 1.750" (44 mm); overall length 5.125" (130 mm) on the SFI-400SS-3/4
- SFI-400SS-3/4 weight: 4.8 lb (2.2 kg)
- The 3/4" SFI-400SS-3/4 is rated to 50 psig (3.45 bar) and 200°F (93°C)
- Wetted parts for SFI-400SS-3/4: borosilicate tube, cast iron or 316 SS body (series options), PTFE gasket
