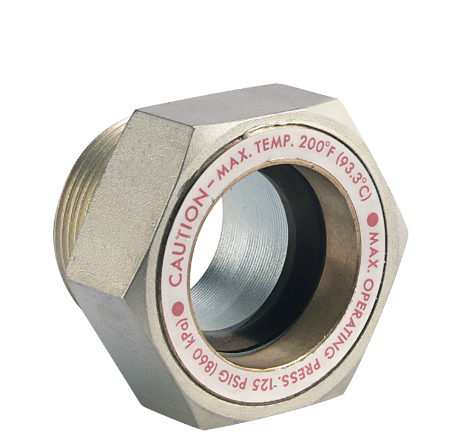

Dwyer SFI-500SS-1-1/4 | Sight Window | 1-1/4" male NPT, 125 psig
Part Number : SFI-500SS-1-1/4
The Dwyer SFI-500SS-1-1/4 is a Series 500 sight window with a 1-1/4" male NPT connection, fitted to tanks or pipes to show their level or contents. The tempered glass pane of the SFI-500SS-1-1/4 sits in a body that the series lists in brass as standard, with carbon steel or 316 SS as options.
- 1-1/4" male NPT process connection on the SFI-500SS-1-1/4
- Tempered glass window; gasket is Buna-N on brass and carbon steel bodies, PTFE on 316 SS (SFI-500SS-1-1/4)
- SFI-500SS-1-1/4 rated to 125 psig (8.6 bar) maximum operating pressure
- Maximum operating temperature of 200°F (93°C) for the SFI-500SS-1-1/4
- Meets EU Directive 2011/65/EU (RoHS II) technical requirements — SFI-500SS-1-1/4
