Dwyer SFI-700-1 | Sight Flow Indicator | 1" Body, 230 psig, 5.1 lb
Part Number : SFI-700-1

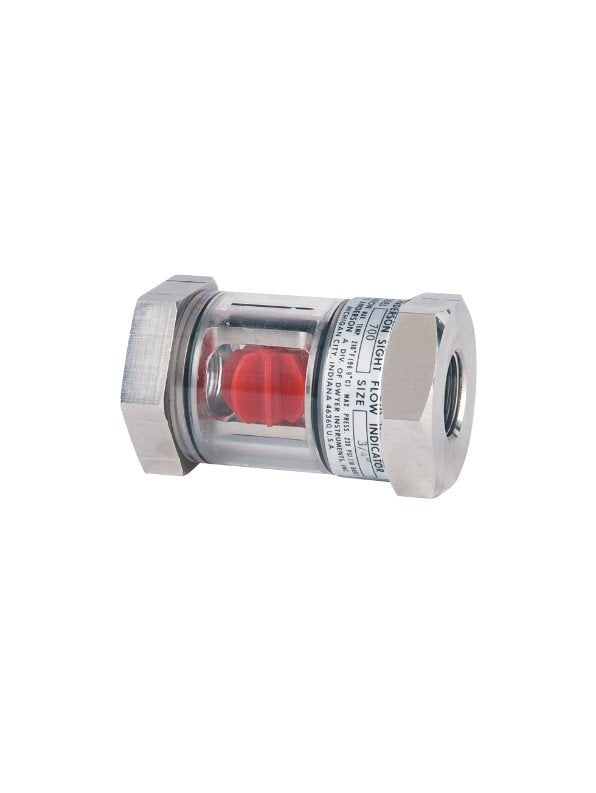

The Dwyer SFI-700-1 is a 700 Series sight flow indicator with a 1" threaded body, 4.875" long by 2.750" high and weighing 5.1 lb (2.3 kg). Inside the SFI-700-1, a bright red acetal impeller spins in a tempered borosilicate glass tube, so flow is visible from any angle.
- 1" body with threaded process connection (SFI-700-1)
- SFI-700-1 dimensions: 4.875" (124 mm) L x 2.750" (70 mm) H
- Internal wipers on the SFI-700-1: twist the glass tube to clear the view without blocking flow
- SFI-700-1 rated to 230 psig (15.86 bar) and 212°F (100°C)
- SFI-700-1 wetted parts: borosilicate tube, fluoroelastomer gasket, acetal indicator; body listed as brass or 316 SS
