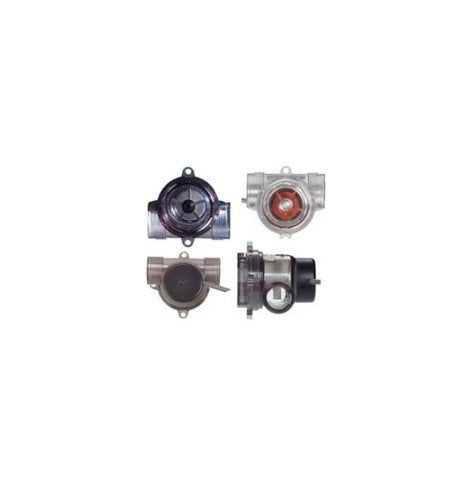

Dwyer SFI-800-1/2 | Polysulfone Sight Flow Indicator | 2-20 GPM, 1/2" female NPT
Part Number : SFI-800-1/2
The Dwyer SFI-800-1/2 is a polysulfone rotor-type sight flow indicator, supplied as the indicator only, for 2-20 GPM (7.6-75.5 LPM) through a 1/2" female NPT connection. For remote monitoring the SFI-800-1/2 accepts the optional Hall Effect output sensors listed for the series.
- 2-20 GPM (7.6-75.5 LPM) range on the SFI-800-1/2
- Optional output sensors for the SFI-800-1/2: A-711 (two pulsed voltage signals), A-712 (linear 1 to 10 VDC), A-713 (two programmed open collector switch outputs)
- Polysulfone body and window, a white polysulfone rotor and an NSF-grade fluoroelastomer O-ring (SFI-800-1/2)
- 1/2" model rated to 150 psi (10.34 bar), -20 to 212°F (-29 to 100°C)
- SFI-800-1/2: max viscosity 200 SSU, weight 3.35 oz (95 g), CE approved
