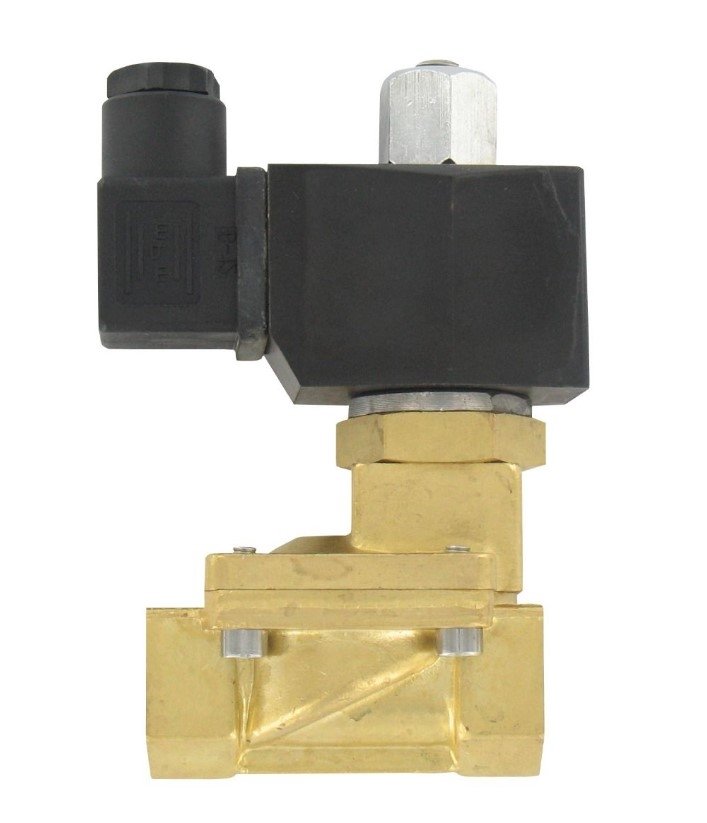

Dwyer SSV-B3N4 | Brass Solenoid Valve | 2-Way, 3/8" NPT, 24 VDC
Part Number : SSV-B3N4
Sized at 3/8" NPT and wound for 24 VDC, the SSV-B3N4 is a two-way Dwyer solenoid valve with a brass body for air, gas and water. It covers 0.5 to 8 bar of operating pressure through the 3/8" body, and the fitted NBR seal is good for process media to 80°C.
- 3/8" female NPT connections; brass body; 304 SS spring
- Rated 0.5 to 8 bar at 3/8" (brass), with a 12 bar maximum operating pressure
- For 3/8" lines: NBR seal, 80°C process limit
- NEMA 13 (IP54) solenoid enclosure with 24 VDC DIN coil, 3/8" brass version
- SSV-B3N4 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
