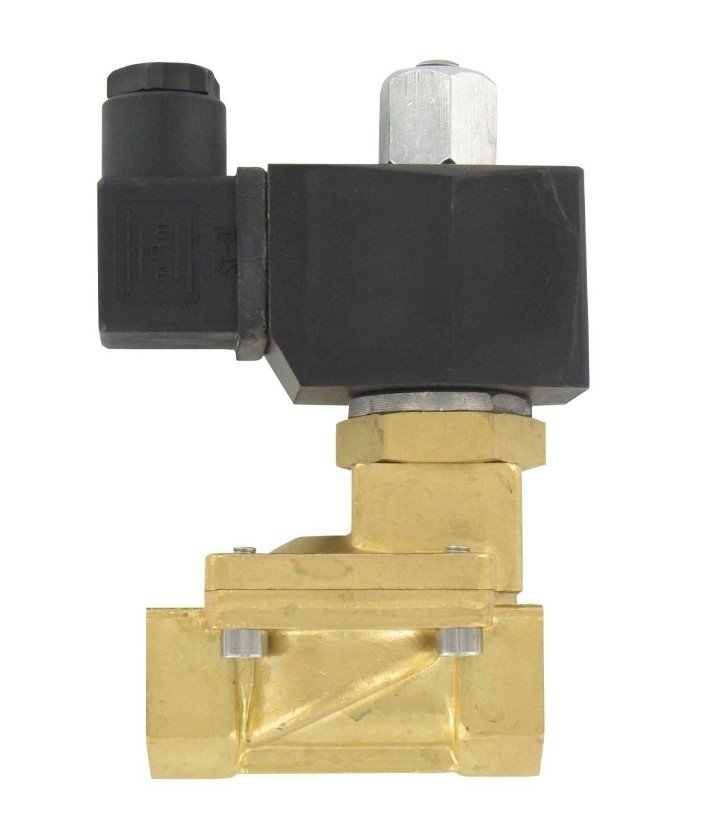

Dwyer SSV-B5N1 | Brass Solenoid Valve | 2-Way, 3/4" NPT, 110 VAC
Part Number : SSV-B5N1
The Dwyer SSV-B5N1 is a compact two-way, guide-type brass solenoid valve with 3/4" female NPT ports and a 110 VAC coil, intended for air, gas and water. It works from 0.5 to 8 bar at the 3/4" size, and its NBR seal suits process temperatures up to 80°C.
- 3/4" female NPT ports on a brass body with 304 SS spring
- Working pressure for the 3/4" brass body: 0.5 to 8 bar, maximum 12 bar
- NBR seal on the 3/4" valve, process temperature to 80°C
- DIN-connected 110 VAC coil for the 3/4" brass body, housed to NEMA 13 (IP54)
- SSV-B5N1 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.10 kg (2.42 lb)
