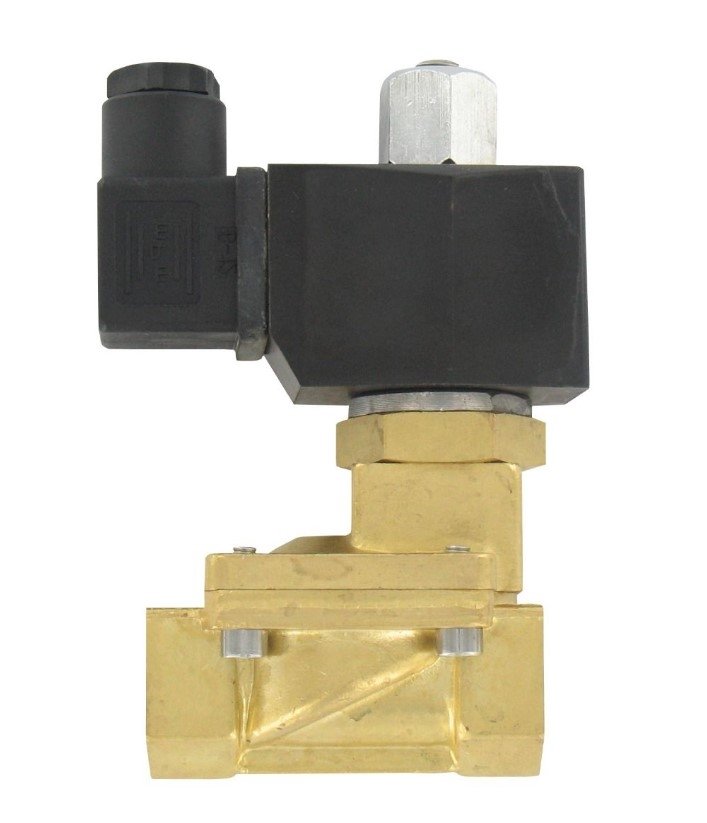

Dwyer SSV-B5N3 | Brass Solenoid Valve | 2-Way, 3/4" NPT, 24 VAC
Part Number : SSV-B5N3
Dwyer's SSV-B5N3 pairs a 3/4" NPT brass valve body with a 24 VAC DIN-connected coil for two-way switching of air, gas or water. It operates between 0.5 to 8 bar in this 3/4" version, and the NBR seal handles process temperatures to 80°C.
- Body brass, spring 304 SS, connections 3/4" female NPT
- Pressure range 0.5 to 8 bar for the 3/4" brass size; maximum 12 bar
- 80°C maximum process temperature with NBR seal at 3/4"
- DIN-connected 24 VAC coil for the 3/4" brass body, housed to NEMA 13 (IP54)
- SSV-B5N3 mounts in any position, ideally with the solenoid vertically above the valve; weight 1.10 kg (2.42 lb)
