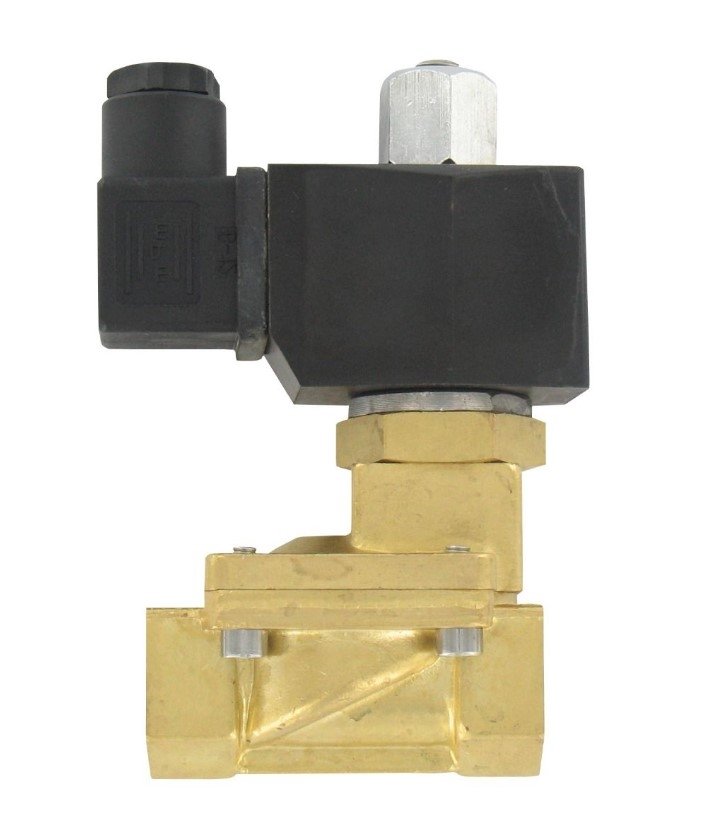

Dwyer SSV-B7N4 | Brass Solenoid Valve | 2-Way, 1-1/4" NPT, 24 VDC
Part Number : SSV-B7N4
Sized at 1-1/4" NPT and wound for 24 VDC, the SSV-B7N4 is a two-way Dwyer solenoid valve with a brass body for air, gas and water. It covers 0.5 to 8 bar of operating pressure through the 1-1/4" body, and the fitted NBR seal is good for process media to 80°C.
- 1-1/4" female NPT connections; brass body; 304 SS spring
- Rated 0.5 to 8 bar at 1-1/4" (brass), with a 12 bar maximum operating pressure
- For 1-1/4" lines: NBR seal, 80°C process limit
- 24 VDC coil with DIN connector on the 1-1/4" brass valve; NEMA 13 (IP54) enclosure
- SSV-B7N4 mounts in any position, ideally with the solenoid vertically above the valve; weight 3.00 kg (6.60 lb)
Free UAE shipping available
For pricing, please contact our experts.
