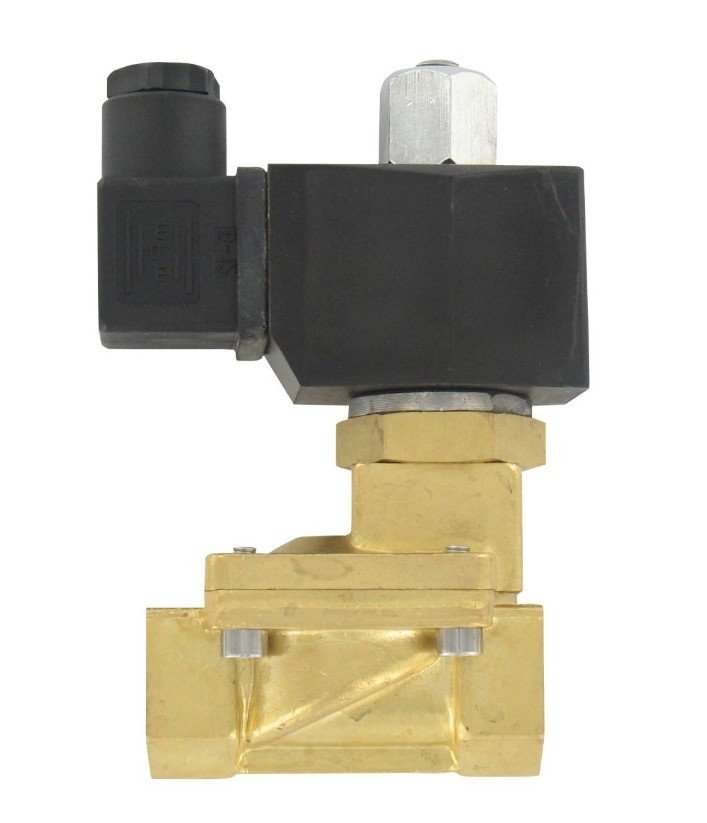

Dwyer SSV-B8N2 | Brass Solenoid Valve | 2-Way, 1-1/2" NPT, 220 VAC
Part Number : SSV-B8N2
The Dwyer SSV-B8N2 is a compact two-way, guide-type brass solenoid valve with 1-1/2" female NPT ports and a 220 VAC coil, intended for air, gas and water. It uses a NBR seal rated for process media up to 80°C, with an operating window of 0.5 to 8 bar in the 1-1/2" size.
- Brass body and 304 SS spring with 1-1/2" female NPT ends
- 0.5 to 8 bar operating pressure at 1-1/2" in brass, 12 bar maximum
- Process media up to 80°C through the 1-1/2" body (NBR seal)
- DIN-connected 220 VAC coil for the 1-1/2" brass body, housed to NEMA 13 (IP54)
- SSV-B8N2 mounts in any position, ideally with the solenoid vertically above the valve; weight 2.80 kg (6.16 lb)
