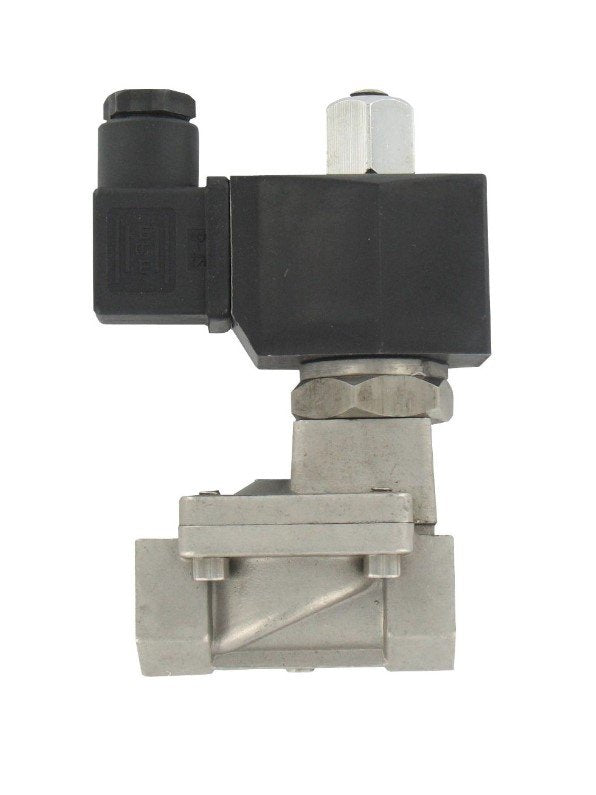

Dwyer SSV-S1F2 | Stainless Steel Solenoid Valve | 2-Way NO, 1/8" NPT, 220 VAC
Part Number : SSV-S1F2
Sized at 1/8" NPT and wound for 220 VAC, the SSV-S1F2 is a two-way Dwyer solenoid valve with a 316 stainless steel body for air, gas and water. It is normally open and uses a FKM seal rated for process media up to 120°C, with an operating window of 0 to 6 bar in the 1/8" size.
- 316 SS body and 304 SS spring with 1/8" female NPT ends
- 0 to 6 bar operating pressure at 1/8" in 316 SS, 12 bar maximum
- Process media up to 120°C through the 1/8" body (FKM seal)
- 220 VAC coil with DIN connector on the 1/8" 316 SS valve; NEMA 13 (IP54) enclosure
- SSV-S1F2 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.40 kg (0.88 lb)
Free UAE shipping available
For pricing, please contact our experts.
