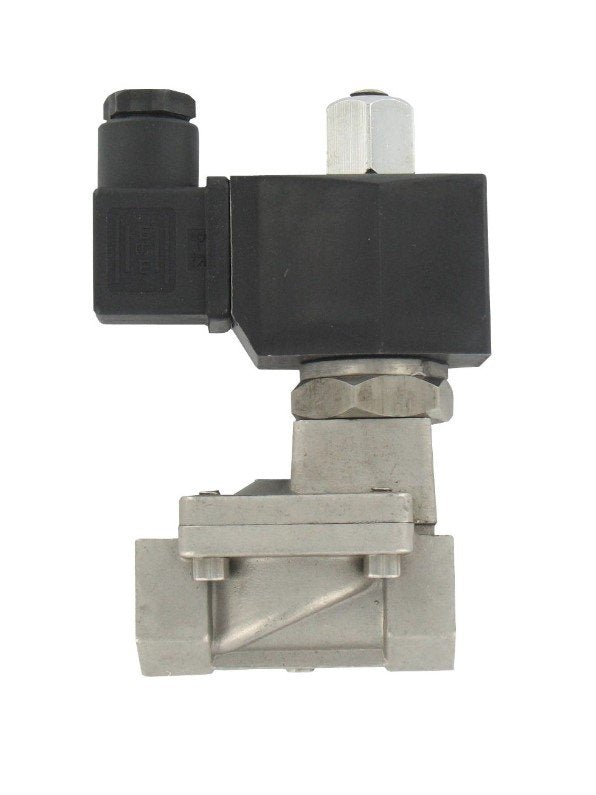

Dwyer SSV-S2F4 | Stainless Steel Solenoid Valve | 2-Way NO, 1/4" NPT, 24 VDC
Part Number : SSV-S2F4
The Dwyer SSV-S2F4 is a compact two-way, guide-type 316 stainless steel solenoid valve with 1/4" female NPT ports and a 24 VDC coil, intended for air, gas and water. It is normally open and covers 0 to 6 bar of operating pressure through the 1/4" body, and the fitted FKM seal is good for process media to 120°C.
- 1/4" female NPT connections; 316 SS body; 304 SS spring
- Rated 0 to 6 bar at 1/4" (316 SS), with a 12 bar maximum operating pressure
- For 1/4" lines: FKM seal, 120°C process limit
- DIN-connected 24 VDC coil for the 1/4" 316 SS body, housed to NEMA 13 (IP54)
- SSV-S2F4 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.39 kg (0.86 lb)
Free UAE shipping available
For pricing, please contact our experts.
