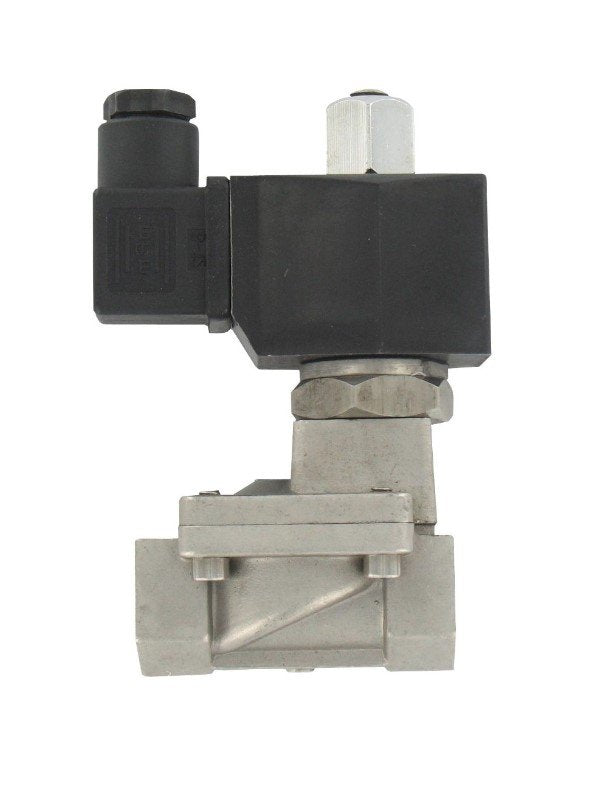

Dwyer SSV-S3F3 | Stainless Steel Solenoid Valve | 2-Way NO, 3/8" NPT, 24 VAC
Part Number : SSV-S3F3
The Dwyer SSV-S3F3 is a compact two-way, guide-type 316 stainless steel solenoid valve with 3/8" female NPT ports and a 24 VAC coil, intended for air, gas and water. It is normally open and operates between 0.5 to 8 bar in this 3/8" version, and the FKM seal handles process temperatures to 120°C.
- Body 316 SS, spring 304 SS, connections 3/8" female NPT
- Pressure range 0.5 to 8 bar for the 3/8" 316 SS size; maximum 12 bar
- 120°C maximum process temperature with FKM seal at 3/8"
- NEMA 13 (IP54) solenoid enclosure with 24 VAC DIN coil, 3/8" 316 SS version
- SSV-S3F3 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.95 kg (2.09 lb)
