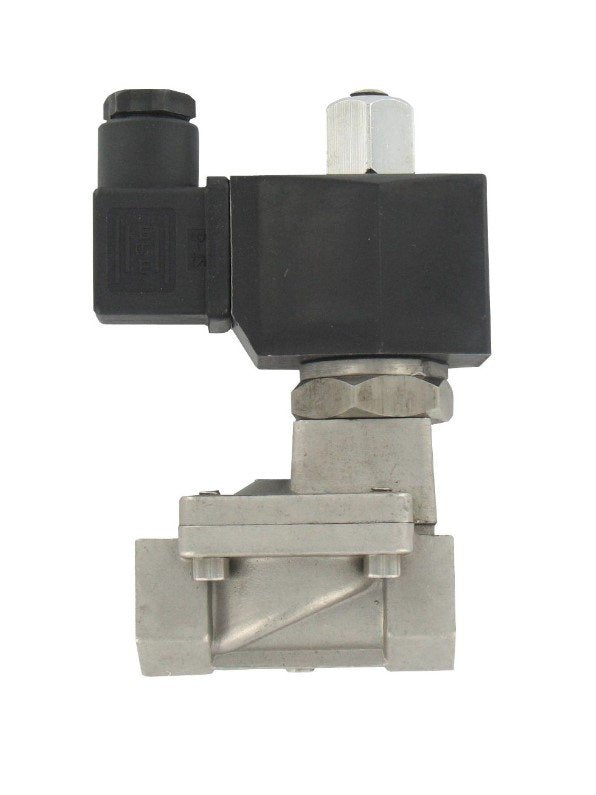

Dwyer SSV-S4F1 | Stainless Steel Solenoid Valve | 2-Way NO, 1/2" NPT, 110 VAC
Part Number : SSV-S4F1
For on/off control of air, gas or water in 1/2" NPT pipework, the Dwyer SSV-S4F1 two-way solenoid valve combines a 316 stainless steel body with a 110 VAC coil. It is normally open and works from 0.5 to 8 bar at the 1/2" size, and its FKM seal suits process temperatures up to 120°C.
- 1/2" female NPT ports on a 316 SS body with 304 SS spring
- Working pressure for the 1/2" 316 SS body: 0.5 to 8 bar, maximum 12 bar
- FKM seal on the 1/2" valve, process temperature to 120°C
- 110 VAC coil with DIN connector on the 1/2" 316 SS valve; NEMA 13 (IP54) enclosure
- SSV-S4F1 mounts in any position, ideally with the solenoid vertically above the valve; weight 0.90 kg (1.98 lb)
Free UAE shipping available
For pricing, please contact our experts.
