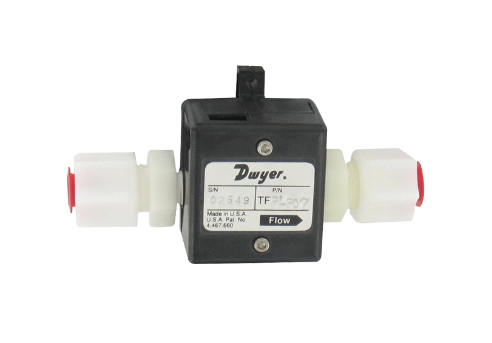

Dwyer Instruments TFP-LP03 | Liquid turbine flow meter | Range .21 to 1.6 GPH (.0013 to 0.1 LPM) | 1/8" OD connection

Name: Dwyer Instruments TFP-LP03 | Liquid turbine flow meter | Range .21 to 1.6 GPH (.0013 to 0.1 LPM) | 1/8" OD connection
Brand: Dwyer
SKU: TFP-LP03
Availability: OutOfStock

Part Number : TFP-LP03

Liquid turbine flow meters of the Model TFP-LP03 are appropriate for a broad range of commercial, industrial, and laboratory flow applications. These meters transform flow rates into a linear 0 to 5 VDC output signal for data logging and recording using a turbine wheel and electro-optical detection. Connect this device to a Series TM2 Flow Totalizer to enable a display for remote flow monitoring. To operate, a power adapter or mating cable assembly is needed.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

	type
Accuracy	+/-1% of full scale
Approvals	CE
Connection	Electrical: Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page
Connection	Process: 1/8" OD connection
Enclosure Rating	IP10 (NEMA 1)
Linearity	+/-1% of full scale
Manufacturer	Dwyer Instruments
Material	Wetted: PPS, acetal, sapphire, glass, epoxy, and fluoroelastomer
Maximum Operating Pressure	100 psig (6.8 bar)
Maximum operating temperature	41 to 131°F (5 to 55°C) Storage: 32 to 158°F (0 to 70°C) Sensitivity: +/-0.2% of full scale per °C
Output Signal	0 to 5 VDC: Minimum 2.5 k¢ž¦ load Pulse: 7.5 VDC peak buffered square wave
POWER CONSUMPTION	35 mA @ 12 VDC
Power	11.5 to 15 VDC
Range	0.21 to 1.6 GPH (.0013 to 0.1 LPM)
Repeatability	+/-0.2% of full scale
Weight	0.19 lb (85 g)

Offering adaptability in utilization across several settings, it is appropriate for a wide range of industrial, commercial, and laboratory flow applications.
Ensures dependable performance in liquid flow measurement by using a turbine wheel mechanism to measure flow rates accurately.
Integrates electro-optical detecting technology to facilitate compliance with data logging and recording systems by converting flow rates into a linear 0 to 5 VDC output signal.
Gives a linear output signal with a voltage range of 0 to 5 VDC, making it easier to integrate with external devices like controllers or data acquisition systems.
Can be used with a Series TM2 Flow Totalizer to provide a remote flow monitoring display, improving user convenience and monitoring capabilities.
Requires a mating cable assembly or power adapter to function, guaranteeing the flow meter's correct operation.
