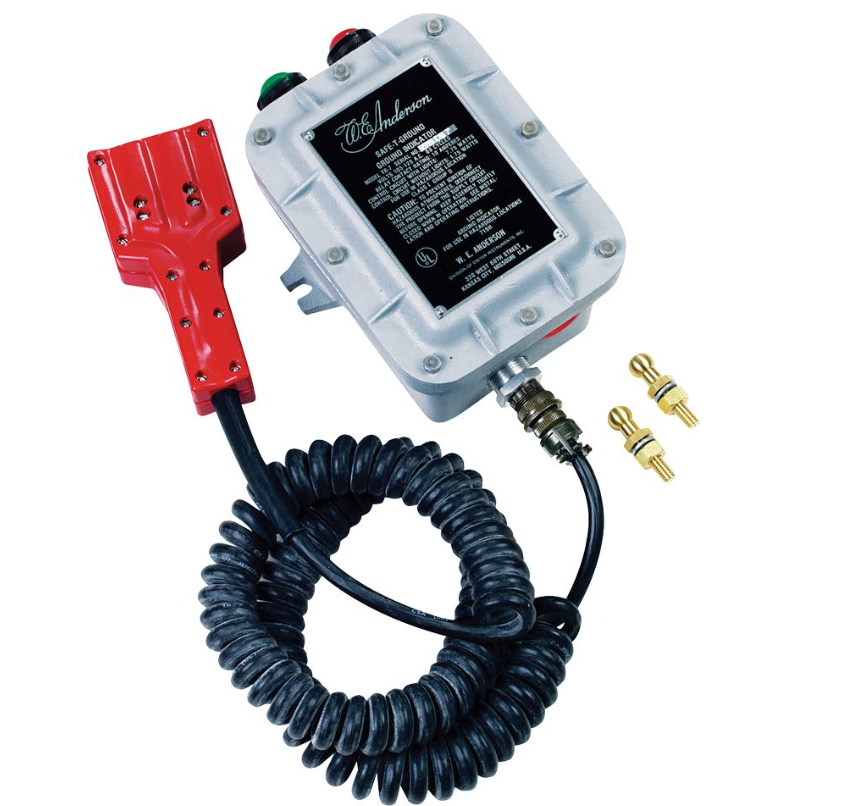

Dwyer TR-7-ABXL | Ground Continuity Control | 72" Cable, Battery Contactor, Pilot Lights
Part Number : TR-7-ABXL
Dwyer TR-7-ABXL is a Safe-T-Ground ground continuity control for hazardous locations, supplied with a 72" cable and a battery-type contactor and pilot lights. The TR-7-ABXL runs on 105-125 VAC, 60 Hz.
- Battery-type clamp with beryllium copper clips; 72" cable, pilot lights fitted
- Cast 356-T6 aluminium enclosure rated explosion-proof; operating range -13 to 104°F (-25 to 40°C)
- Switches DPDT, 10 A 125 VAC; 3/4" NPT conduit connection; 7/16" mounting lugs; terminal strip wiring
- Overall 10-3/8" H by 6-5/8" W by 5-5/8" D; 16-2 type SO coiled cable extending to 16 ft
- Power draw 7.75 W (lights on) or 1.75 W
