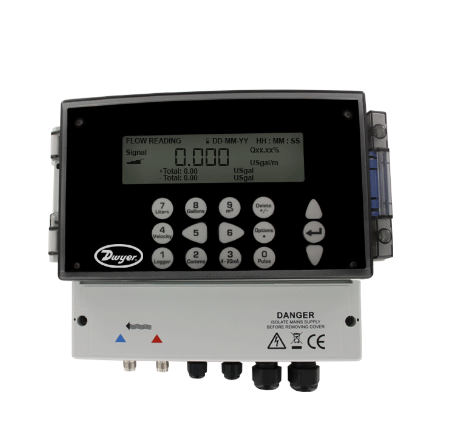

Dwyer UFB-222 | Ultrasonic Flowmeter Set | 0.5 to 4.5" Pipe, 24 VAC/VDC

Name: Dwyer UFB-222 | Ultrasonic Flowmeter Set | 0.5 to 4.5" Pipe, 24 VAC/VDC
Brand: Dwyer
SKU: UFB-222
Availability: InStock

Part Number : UFB-222

For permanent installation on 0.5 to 4.5" (13 to 115 mm) pipe, the Dwyer UFB-222 ultrasonic set measures flow from outside the pipe by transit-time difference. The UFB-222 runs on 24 VAC/VDC and is meant for clean, homogeneous liquids without air pockets.

Selectable 4-20, 0-16 or 0-20 mA output, pulse relay and two alarm relays (UFB-222)
Backlit 240 x 64 graphic display with ten languages (UFB-222)
UFB-222 enclosure IP65 with TNC connector; transducers IP54
Repeatability ±0.5% of measured value (UFB-222)
UFB-222 velocity range 0.1 to 10 m/s

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	UFB-222
Brand	Dwyer
Pipe Size	0.5 to 4.5" (13 to 115 mm)
Power	24 VAC/VDC
Velocity Range	0.33 to 33 ft/s (0.1 to 10 m/s)
Accuracy	±0.5 to 2% of reading (pipe OD >75 mm)
Repeatability	±0.5% of measured value
Outputs	4-20/0-16/0-20 mA; pulse; 2 alarm relays
Display	240 x 64 backlit graphic
Mounting	Wall, 3 x M4 screws
Enclosure Rating	IP65 with TNC connector; transducers IP54
Controller Temperature	-4 to 122°F (-20 to 50°C)
Weight	1.26 kg unit; 4.5 kg with accessories

Makes use of the transit-time difference to monitor pipe flow rates precisely.
Maintains the integrity of the system by enabling measurement without entering the pipe.
Designed to be permanently installed, the converter can be put on a pipe or surface.
Because of its lightweight and small design, it is simple to handle and install.
Appropriate for use with liquids that are ideally homogenous, guaranteeing precise measurements.
Designed to provide accurate readings in liquids without any air pockets.
It is appropriate for a variety of industrial situations since it offers protection against dust and direct water contact.
Features a pulse output capability and 4 to 20 mA output range for easy data transfer and system integration.
