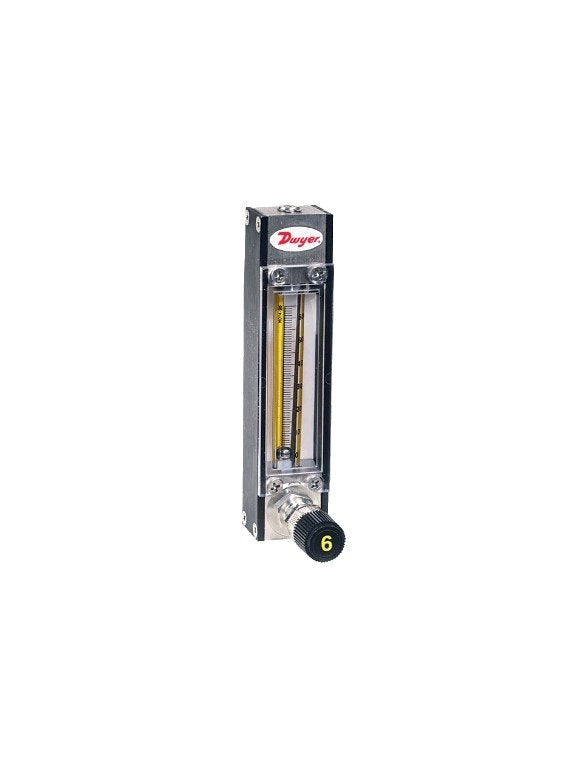

Dwyer VA10413 | Variable Area Glass Flowmeter | Glass float, 4.32 SCFH air, 0.63 GPH water
Part Number : VA10413
Dwyer VA10413: a variable area glass flowmeter carrying a glass float, with maximum flows of 0.63 GPH (40 ml/min) water and 4.32 SCFH (2040 ml/min) air. The VA10413 is supplied assembled for panel mounting and is used for carrier gases, process flow indication and lab or pilot-plant measurement.
- ±2% FS accuracy and ±0.25% FS repeatability on the VA10413
- Universal mm scale (65 or 150 mm) plus air and water correlation charts for the VA10413
- VA10413 flow control: 6-turn needle valve, optional 16-turn high precision metering valve
- Two 1/8" female NPT ports and a borosilicate flowtube with 10:1 turn-down on the VA10413
- Vertical mounting; an optional acrylic tripod base turns the VA10413 into a bench unit
