Dwyer VA10417 | Variable Area Glass Flowmeter | Glass float, 13.4 SCFH air, 2.33 GPH water
Part Number : VA10417

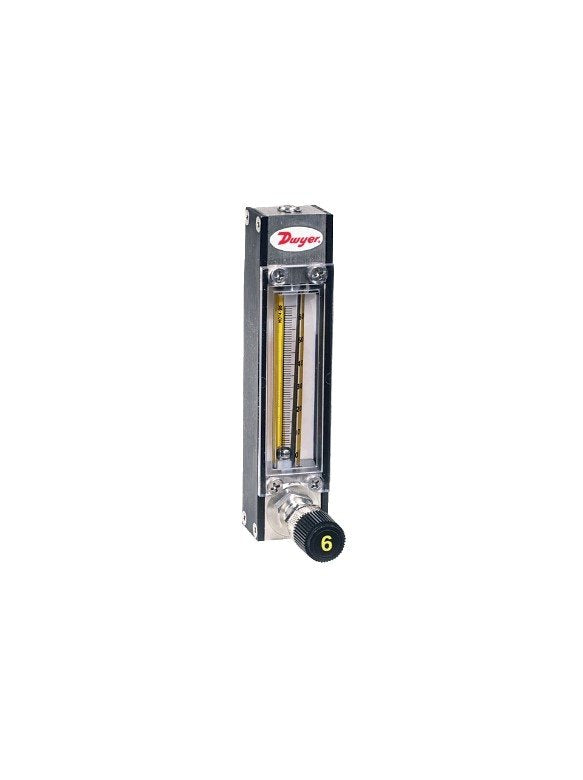

The Dwyer VA10417 glass flowmeter uses a glass float and reaches 13.4 SCFH (6318 ml/min) on air or 2.33 GPH (147 ml/min) on water. It suits lab and pilot-plant liquid or gas measurement, carrier gas metering and process flow indication, and the VA10417 is supplied panel-mount ready.
- Accuracy of the VA10417: ±2% FS (70°F, 14.7 psia), with ±0.25% FS repeatability
- Air and water correlation charts accompany the universal mm scale of the VA10417
- Standard 6-turn needle valve on the VA10417; 16-turn high precision valve offered separately
- Borosilicate glass tube, 10:1 turn-down and two 1/8" female NPT ports (VA10417)
- For bench use, the VA10417 can sit on an optional acrylic tripod base
Free UAE shipping available
For pricing, please contact our experts.
