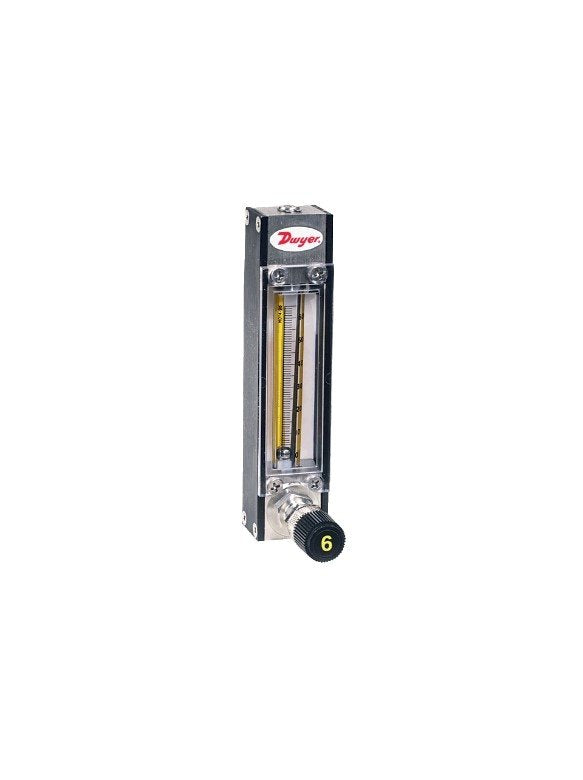

Dwyer VA1046 | Variable Area Glass Flowmeter | SS float, 0.633 SCFH air, 0.122 GPH water
Part Number : VA1046
Rated for up to 0.633 SCFH air (299 ml/min) and 0.122 GPH water (7.7 ml/min), the Dwyer VA1046 glass flowmeter is fitted with a stainless steel float. Supplied fully assembled for the panel, the VA1046 meters carrier gases and indicates liquid or gas flow in labs, pilot plants and processes.
- VA1046 accuracy ±2% FS at 70°F (21.1°C) and 14.7 psia; repeatability ±0.25% FS
- VA1046 reads on a universal mm scale, with correlation charts for air and water
- Needle valve (6-turn) fitted to the VA1046, with a 16-turn precision valve as an option
- VA1046 connections: two 1/8" female NPT; borosilicate glass flowtube; 10:1 turn-down
- VA1046 mounts vertically, or on an optional acrylic tripod base for bench use
Free UAE shipping available
For pricing, please contact our experts.
