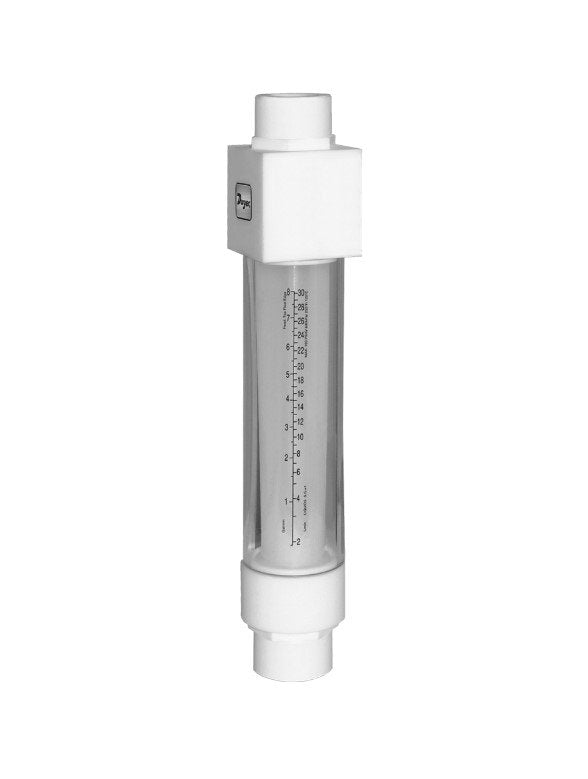

Dwyer Instruments VAT-307 | Variable area Flowmeter | 3/8" female NPT | Flow rate 2500 ml/min (39.62 GPH)
For applications involving very pure or corrosive liquids, the Model VAT-307 Variable Area Fluoropolymer Flowmeter is perfect. A 0 to 10 scale is used in this series of flowmeters to indicate flow. To ensure that the leak integrity rating is at least 1 x 10-7 secs Helium, each unit is independently leak tested.

Free UAE shipping available
- Specifications
- Features
- Downloads
Accuracy | +/-5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute) |
Connection | Process: 3/8" female NPT |
Leak Integrity | 1 x 10-7 sccs of Helium |
Manufacturer | Dwyer Instruments |
Material | Wetted: Flowtube: PFA Float and end fittings: PTFE Guide rods: PCTFE |
Maximum Operating Pressure | 100 psig (6.9 bar) |
Maximum operating temperature | 250°F (121°C) |
Mounting | Vertical, in-line |
Scale | Direct reading |
Type | Variable Area Fluoropolymer Flowmeter |
- Specifically designed for use in applications involving high purity or corrosive liquids, ensuring compatibility with a wide range of substances.
- Features a 0 to 10 scale for flow indication, allowing for easy and precise monitoring of flow rates.
- Each unit undergoes individual leak testing to ensure leak integrity, with a leak integrity rating of 1 x 10-7 sccs Helium or better. This ensures reliability and safety in operation.
