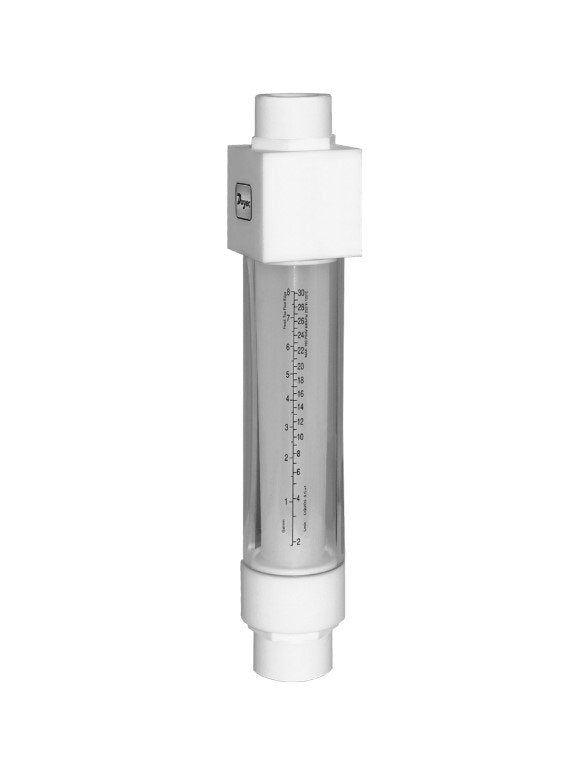

Dwyer Instruments VAT-6012 | Variable area Flowmeter | 3/4" female NPT | Flow rate 30 LPM (7.93 GPM)

Name: Dwyer Instruments VAT-6012 | Variable area Flowmeter | 3/4" female NPT | Flow rate 30 LPM (7.93 GPM)
Brand: Dwyer
SKU: VAT-6012
Availability: OutOfStock

Part Number : VAT-6012

For applications involving very pure or corrosive liquids, the Model VAT-6012 Variable Area Fluoropolymer Flowmeter is perfect. A 0 to 10 scale is used in this series of flowmeters to indicate flow. To ensure that the leak integrity rating is at least 1 x 10-7 sccs Helium, each unit is independently leak tested.

Availability: Sold out

Free UAE shipping available

Specifications
Features
Downloads

Accuracy	+/-5% FS @ 70°F (21.1°C) and 14.7 psia (1 atm absolute)
Connection	Process: 3/4" female NPT
Leak Integrity	1 x 10-7 sccs of Helium
Manufacturer	Dwyer Instruments
Material	Wetted: Flowtube: PFA Float and end fittings: PTFE Guide rods: PCTFE
Maximum Operating Pressure	100 psig (6.9 bar)
Maximum operating temperature	250°F (121°C)
Mounting	Vertical, in-line
Scale	Direct reading
Type	Variable Area Fluoropolymer Flowmeter

Specifically designed for use in applications involving high purity or corrosive liquids, ensuring compatibility with a wide range of substances.
Features a 0 to 10 scale for flow indication, allowing for easy and precise monitoring of flow rates.
Each unit undergoes individual leak testing to ensure leak integrity, with a leak integrity rating of 1 x 10-7 sccs Helium or better. This ensures reliability and safety in operation.

Dwyer Instruments VAT-6012 | Variable area Flowmeter | 3/4" female NPT | Flow rate 30 LPM (7.93 GPM)

DOWNLOAD CATALOG
