Dwyer Instruments VAT-6112 | Variable area Flowmeter | 3/4" female NPT | Flow rate 30 LPM (7.93 GPM) - generaltechuae

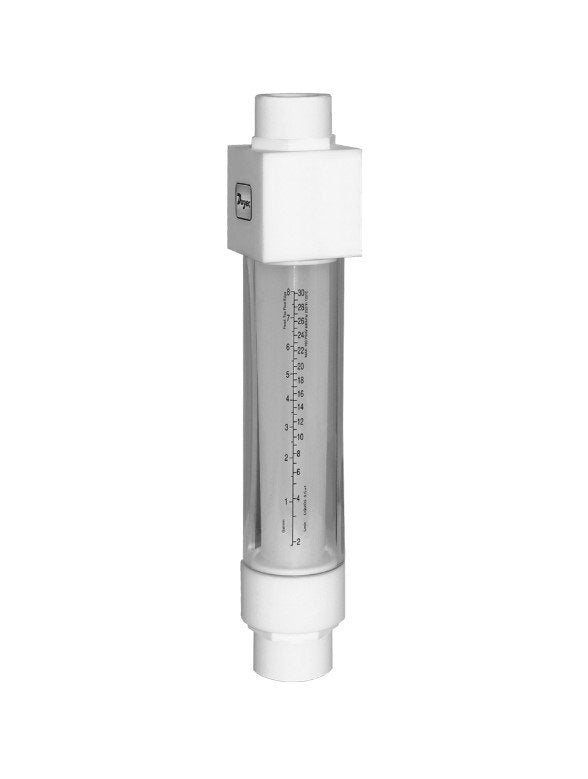

Dwyer VAT-6112 | Fluoropolymer Variable Area Flowmeter | 30 LPM, 3/4" female NPT

Part Number : VAT-6112

The Dwyer VAT-6112 is a variable area fluoropolymer flowmeter rated for a flow rate of 30 LPM (7.93 GPM), with a 3/4" female NPT process connection. It is intended for very pure or corrosive liquids, and every VAT-6112 is leak tested individually.

  • VAT-6112 leak integrity at least 1 x 10⁻⁷ sccs helium
  • Accuracy ±5% FS at 70°F (21.1°C) and 14.7 psia (VAT-6112)
  • Wetted parts of the VAT-6112: PFA flowtube, PTFE float and end fittings, PCTFE guide rods
  • VAT-6112 limits: 100 psig (6.9 bar), 250°F (121°C)
  • Vertical, in-line mounting for the VAT-6112
