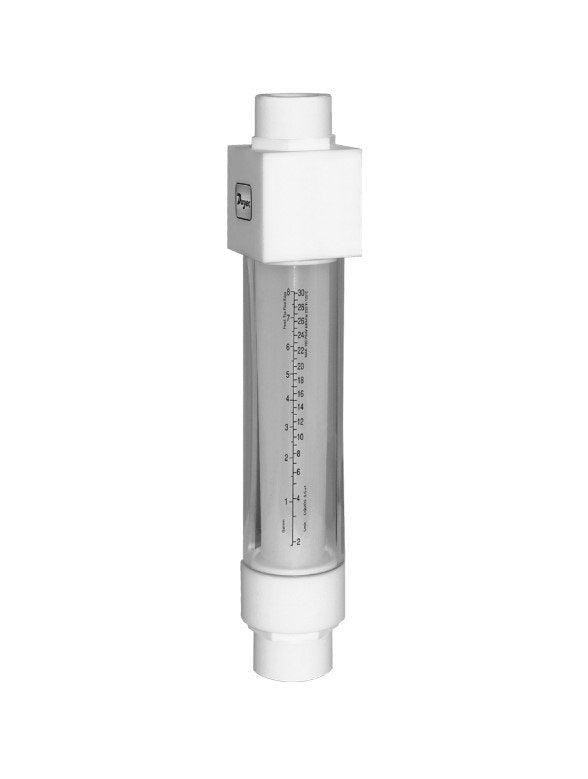

Dwyer VAT-6113 | Fluoropolymer Variable Area Flowmeter | 40 LPM, 3/4" female NPT
Rated at 40 LPM (10.57 GPM) and plumbed through a 3/4" female NPT process connection, the Dwyer VAT-6113 is a fluoropolymer variable area flowmeter. The VAT-6113 targets applications with very pure or corrosive liquids; each unit is leak tested on its own.
- Each VAT-6113 individually tested to 1 x 10⁻⁷ sccs helium leak integrity
- VAT-6113 accuracy: ±5% FS (70°F, 14.7 psia)
- VAT-6113 flowtube in PFA; float and end fittings in PTFE; guide rods in PCTFE
- Maximum operating pressure 100 psig (6.9 bar) and temperature 250°F (121°C) on the VAT-6113
- VAT-6113 installs vertically and in-line
- Specifications
- Features
- Downloads
| Part Number | VAT-6113 |
| Brand | Dwyer |
| Type | Variable area fluoropolymer flowmeter |
| Accuracy | ±5% FS @ 70 °F (21.1 °C), 14.7 psia |
| Mounting | Vertical, in-line |
| Flowtube | PFA |
| Process Connection | 3/4" female NPT |
| Max. Operating Pressure | 100 psig (6.9 bar) |
| Flow Rate | 40 LPM (10.57 GPM) |
| Leak Integrity | 1 x 10⁻⁷ sccs helium |
| Float and End Fittings | PTFE |
| Guide Rods | PCTFE |
| Max Operating Temperature | 250 °F (121 °C) |
- Specifically designed for use in applications involving high purity or corrosive liquids, ensuring compatibility with a wide range of substances.
- Features a 0 to 10 scale for flow indication, allowing for easy and precise monitoring of flow rates.
- Each unit undergoes individual leak testing to ensure leak integrity, with a leak integrity rating of 1 x 10-7 sccs Helium or better. This ensures reliability and safety in operation.
