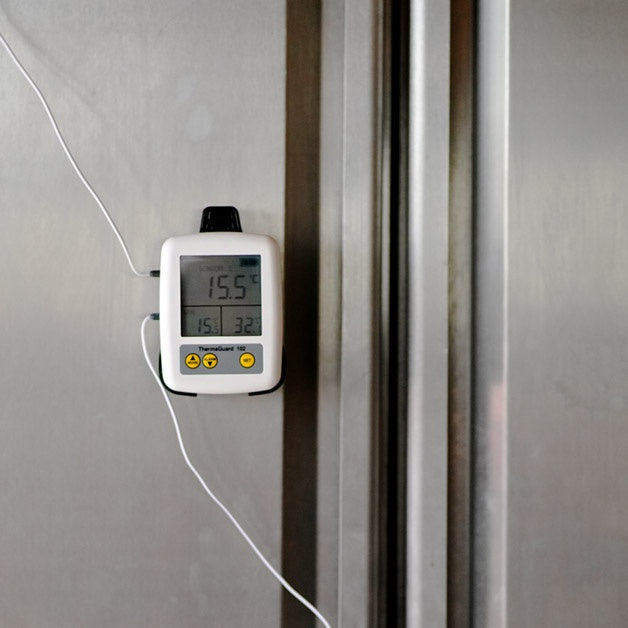

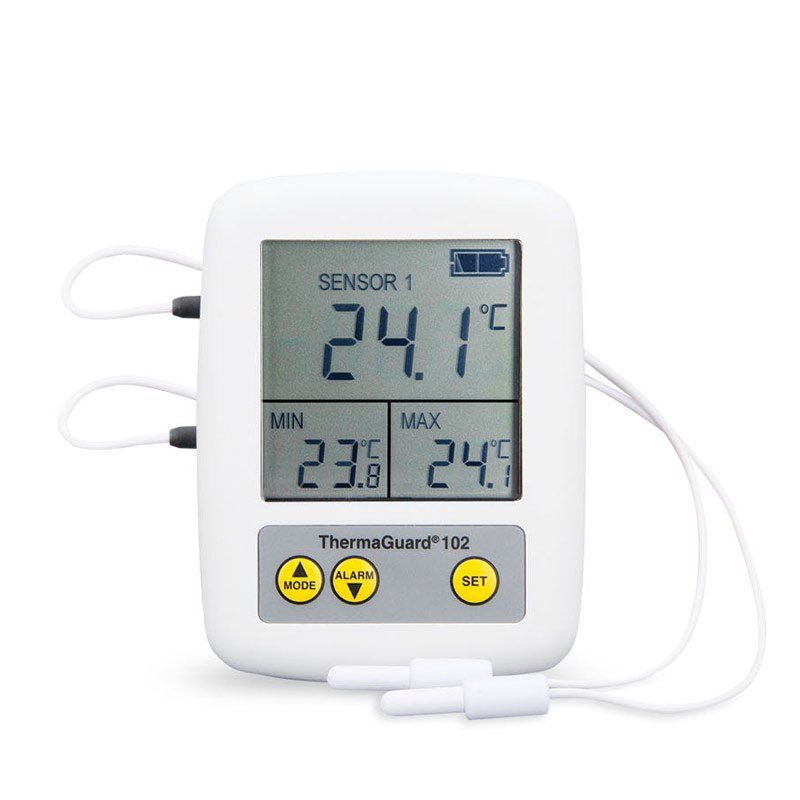

ETI 226-512 | ThermaGuard Fridge Freezer Alarm Thermometer | Model 102
ETI part 226-512 is the ThermaGuard 102, the dual-sensor version of ETI's fridge and freezer alarm thermometer. Two external sensors on 2 m leads let one unit watch two compartments, with programmable high/low audible alarms and max/min recording over -39.9 to 49.9 °C.
Key features
- Model 102 with dual external sensors on 2000 mm PVC leads
- Range -39.9 to 49.9 °C, ±0.4 °C accuracy
- Programmable high and low audible alarms (82.1 dB)
- Max/min temperature recording
- Conforms to EN 13485; IP54 case
- Specifications
- Downloads
| Part Number | 226-512 |
| Brand | ETI |
| Model | 102 |
| Sensors | Dual external sensors |
| Assured Accuracy | Yes |
| Range | -39.9 to 49.9 °C |
| Accuracy | ±0.4 °C |
| Resolution | 0.1 °C |
| Alarm | High/low audible, 82.1 dB |
| Lead | 2000 mm straight PVC |
| IP Rating | IP54 |
| Battery | 2 x AA |
| Battery Life | 25,000 hours |
| Dimensions | 96 x 73 x 29 mm |
| Weight | 214 g |
| Conforms To | EN 13485 |
