Flexbar 10306 | UNC Hole Location Plug (Inch) | 1/2-13

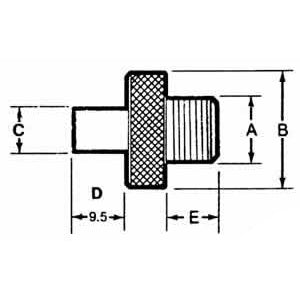

Flexbar 10306 is the 1/2-13 UNC hole location plug, made to thread into a 1/2-13 tapped hole so its position can be measured. A 3/8 in long, .2500 in diameter (+.0002/-.0000) shaft is shared across the range to simplify hole spread calculation, and the 1/2-13 plug (10306) holds all diameters concentric to .0001 in T.I.R.
Key features
- 1/2-13 UNC thread
- .2500 in shaft diameter, +.0002/-.0000
- 3/8 in shaft length
- All diameters concentric within .0001 in T.I.R.
- Specifications
| Part Number | 10306 |
| Brand | Flexbar |
| Thread Size | 1/2-13 |
| Thread Series | UNC |
| Shaft Diameter | .2500 in +.0002 / -.0000 |
| Shaft Length | 3/8 in |
| Concentricity | Within .0001 in T.I.R. |
