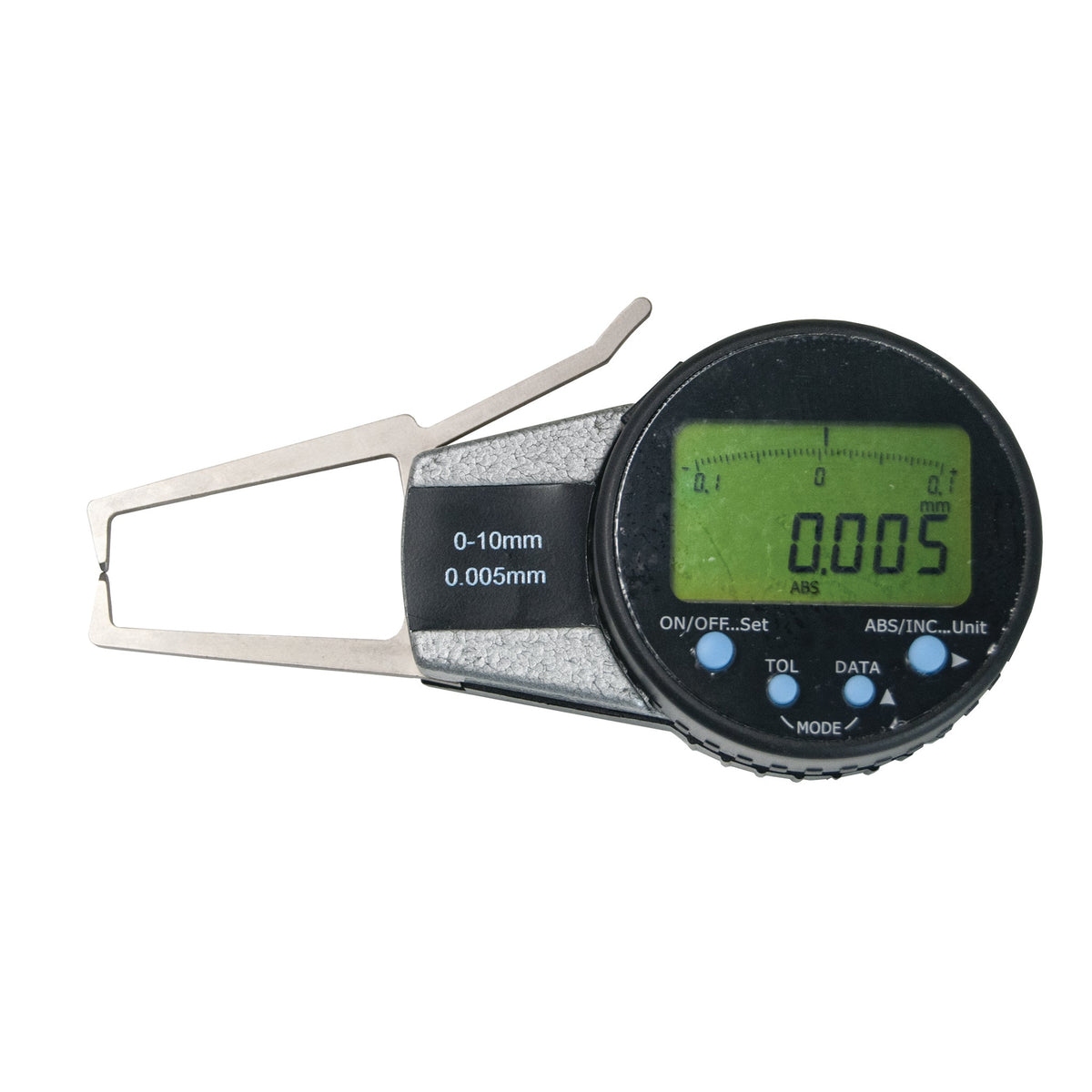

Flexbar 12685 | Electronic External Caliper Gage | 0-0.400 in / 0-10 mm
Flexbar 12685 is the smaller of the two electronic external caliper gages, measuring from 0 to 0.400 in (0-10 mm). Flexbar lists the series for precision measurement of diameters, grooves and recesses.
Key features
- External measuring range 0-0.400 in (0-10 mm)
- Resolution 0.0005 in / 0.01 mm; accuracy ±0.0008 in
- Large analogue/digital LCD display
- Preset, absolute/incremental and direct inch/metric conversion
- RS232 output
- Rugged, easy-to-hold housing; hard aluminium case supplied
- Specifications
| Part Number | 12685 |
| Brand | Flexbar |
| Type | External |
| Accuracy | ±0.0008 in |
| Measuring Range | 0-0.400 in (0-10 mm) |
| Case | Hard aluminium |
| Display | Analogue/digital LCD |
| Resolution | 0.0005 in / 0.01 mm |
| Output | RS232 |
| Functions | Preset, abs/inc, inch/metric |
