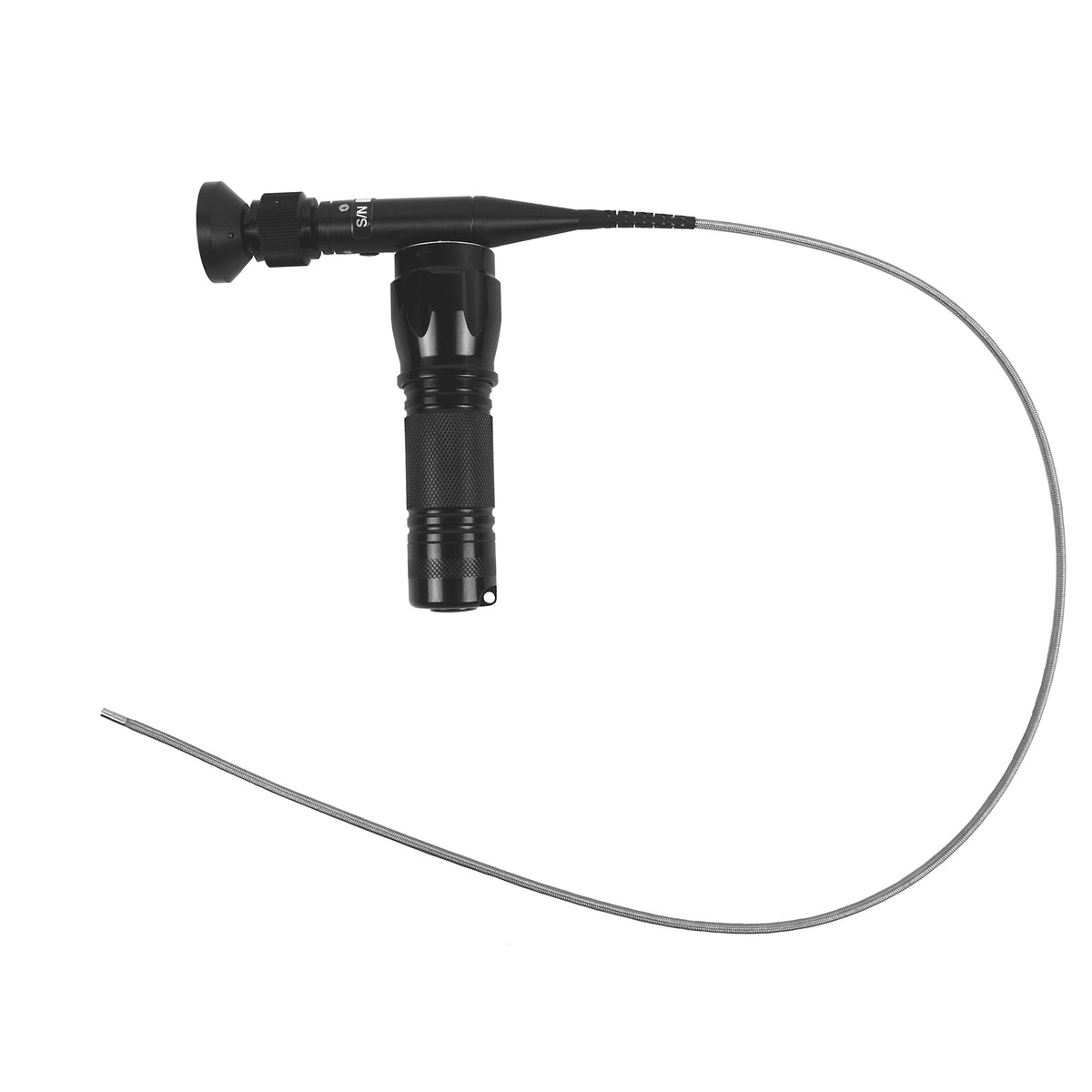

Flexbar 13541 | Flexible Fiberoptic Borescope | 3 mm x 36 in
The Flexbar 13541 is the 36 in version of the 3 mm flexible fiberoptic borescope, with a braided stainless steel shaft. It produces a high resolution image through access holes as small as 3 mm, using a quartz fibre imaging bundle and fibre optic illumination, and comes with a portable 3 V battery light handle and foam-lined carrying case.
Key features
- 3 mm (0.120 in) shaft, 36 in long, braided stainless steel
- Bend radius 1.5 in (38 mm)
- 50° field of view standard; 70° available
- Depth of field 0.2-3.0 in (5-75 mm)
- B-style eyepiece, diopter adjustable, with photo capability
- Forward viewing; right angle viewing with adapter
Optional accessories listed by Flexbar include a 150 W illuminator (12720), flexible light guide (13283), 35 mm/digital still camera adapter, C-mount video camera adapter, C-mount video camera and monitor, and a right angle viewing adapter.
- Specifications
| Part Number | 13541 |
| Brand | Flexbar |
| Eyepiece | B-style, diopter adjustable |
| Shaft Length | 36 in |
| Included | 3 V battery light handle, foam-lined case |
| Shaft Diameter | 0.120 in (3 mm) |
| Field of View | 50° standard, 70° available |
| Depth of Field | 0.2 to 3.0 in (5 to 75 mm) |
| Shaft Construction | Braided stainless steel |
| Bend Radius | 1.5 in (38 mm) |
| Direction of View | Forward; right angle with adapter |
