Flexbar 13590 | 3-Axis Universal Mount Interlocked Guard | Wrap-Around Shield, 4 in Radius
Part Number : 13590

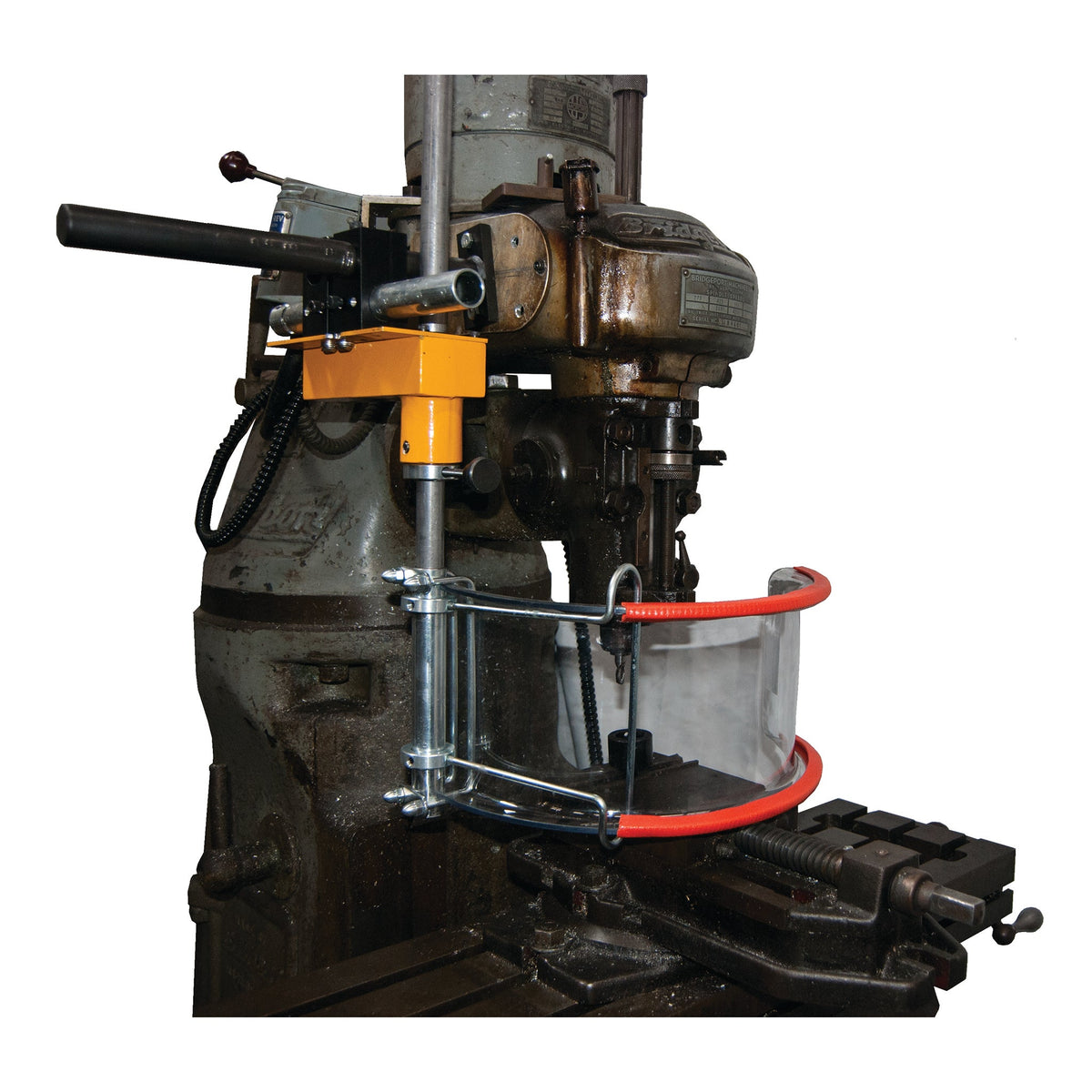

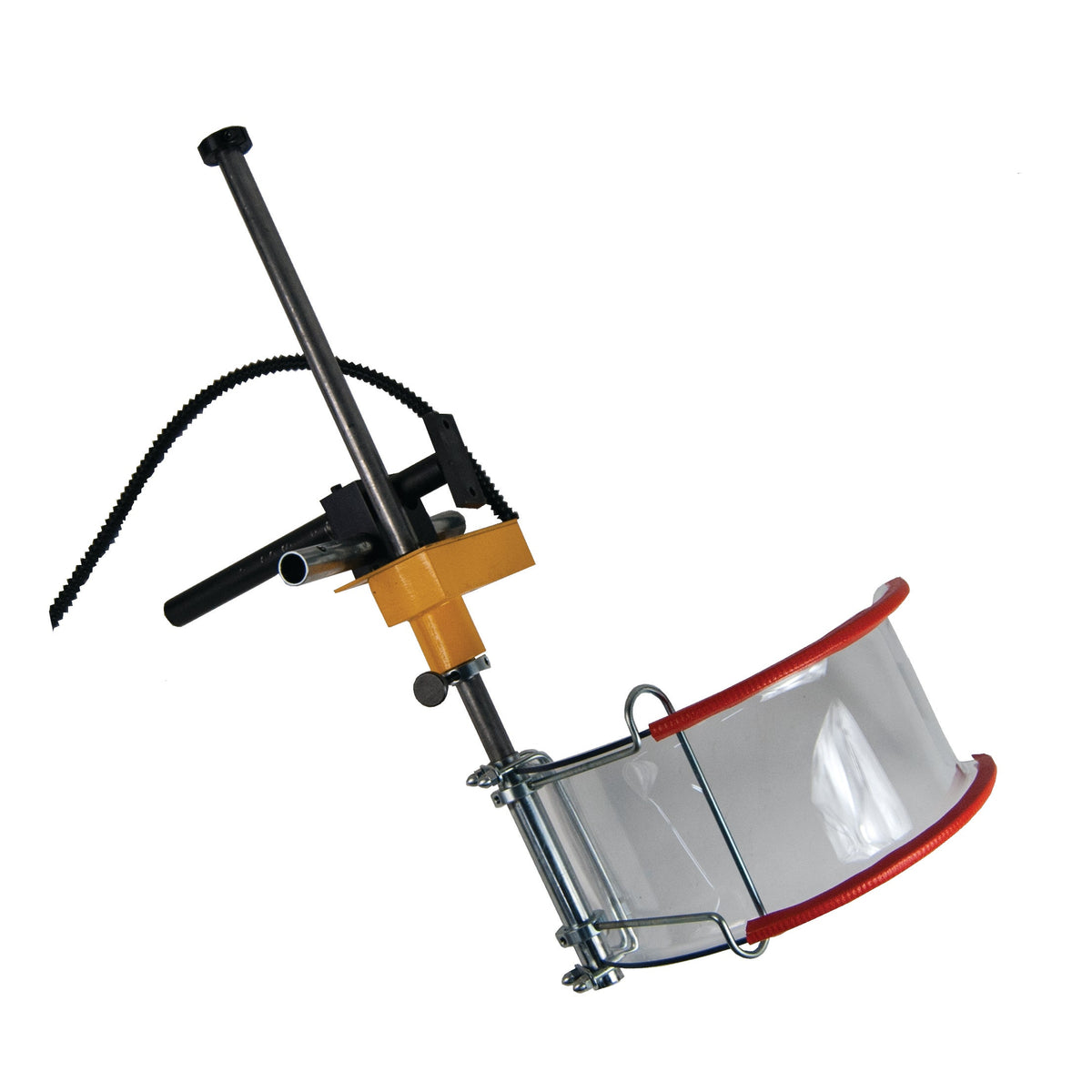

Flexbar 13590 is the 4 in radius wrap-around shield for the 3-axis universal mount interlocked system, standing 6 1/4 in high. Mounted laterally on the system, it guards milling machines and drill presses.
Key features
- Shield positions vertically, horizontally and in-and-out (3-axis)
- Horizontal post with bracket for attaching to the machine headstock
- Shield permanently fixed to a vertical post mounted through the Flexbar electrical interlocking device
- Cam-operated limit switch stops the machine when the shield is swung out of position
- 4 in radius, 6 1/4 in height
Includes attached wiring with flexible conduit for connection to the machine's safety circuit, which switches off control of spindle movement. Set-up instructions are published by Flexbar.
For pricing, please contact our experts.
