Flexbar 13591 | 3-Axis Universal Mount Interlocked Guard | Wrap-Around Shield, 6 in Radius

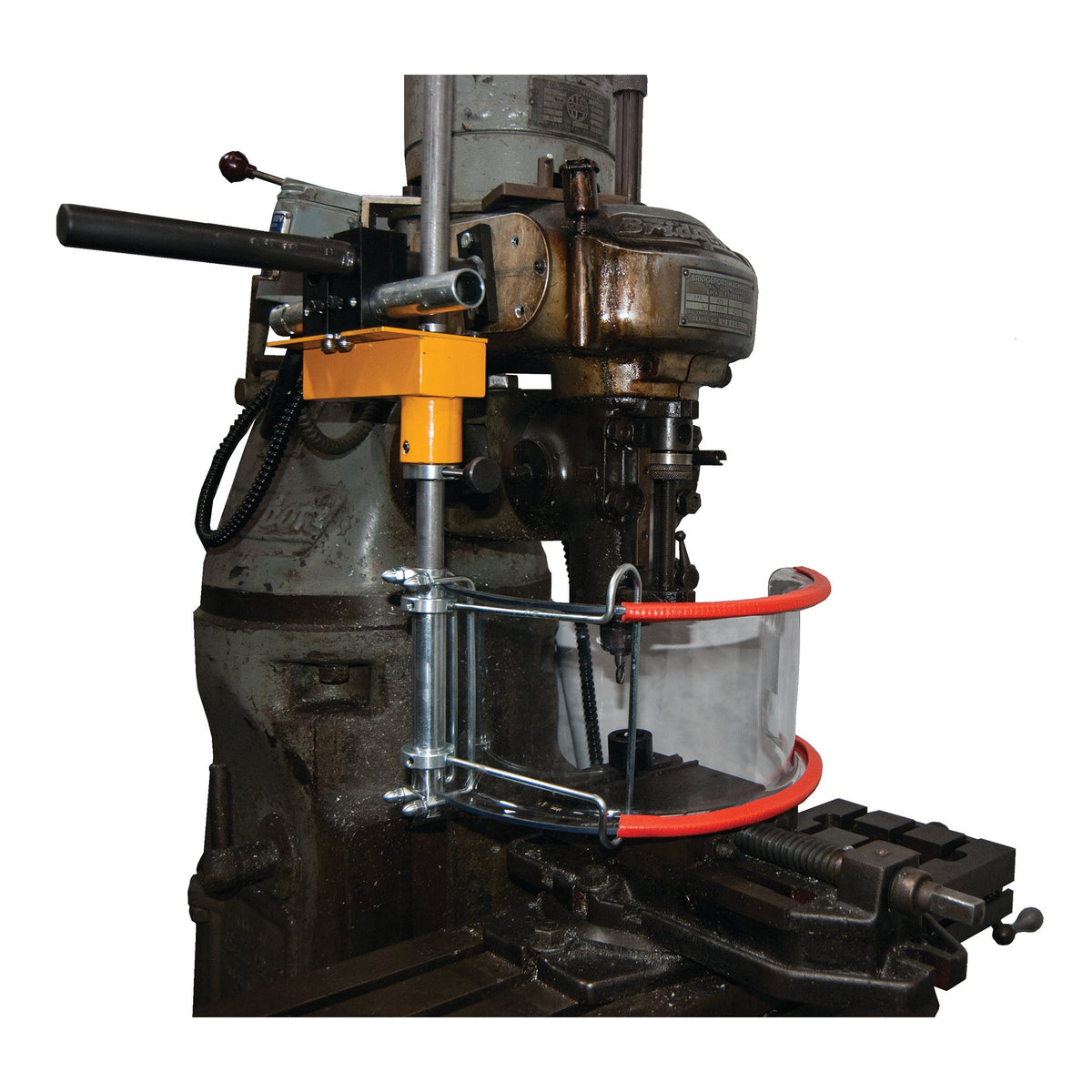

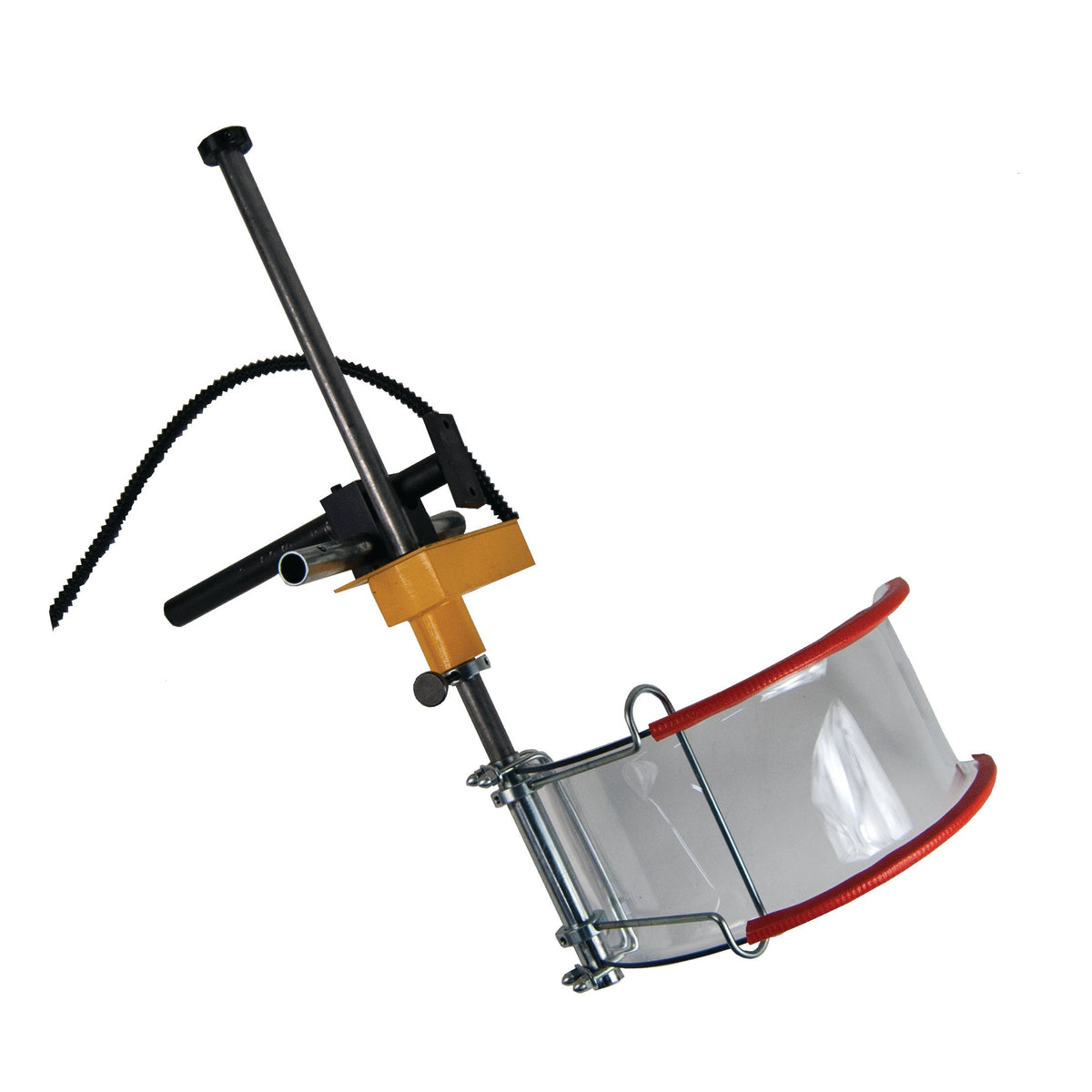

Flexbar 13591 is the larger 6 in radius wrap-around shield on the 3-axis universal mount interlocked system, with a 6 1/4 in height. It is mounted laterally to guard milling machines and drill presses.
Key features
- 3-axis adjustment: up and down, side to side, in and out
- Mounting bracket on the horizontal post fixes to the headstock
- Vertical post passes through Flexbar's electrical interlocking device
- Swinging the shield away opens the limit switch contacts and stops the machine
- 6 in radius, 6 1/4 in height
Includes attached wiring with flexible conduit for connection to the machine's safety circuit, which switches off control of spindle movement. Set-up instructions are published by Flexbar.
- Specifications
- Downloads
| Part Number | 13591 |
| Brand | Flexbar |
| Shield | Wrap-around |
| Radius | 6 in |
| Positioning | 3-axis universal mount |
| Height | 6 1/4 in |
| Interlock | Cam-operated limit switch |
