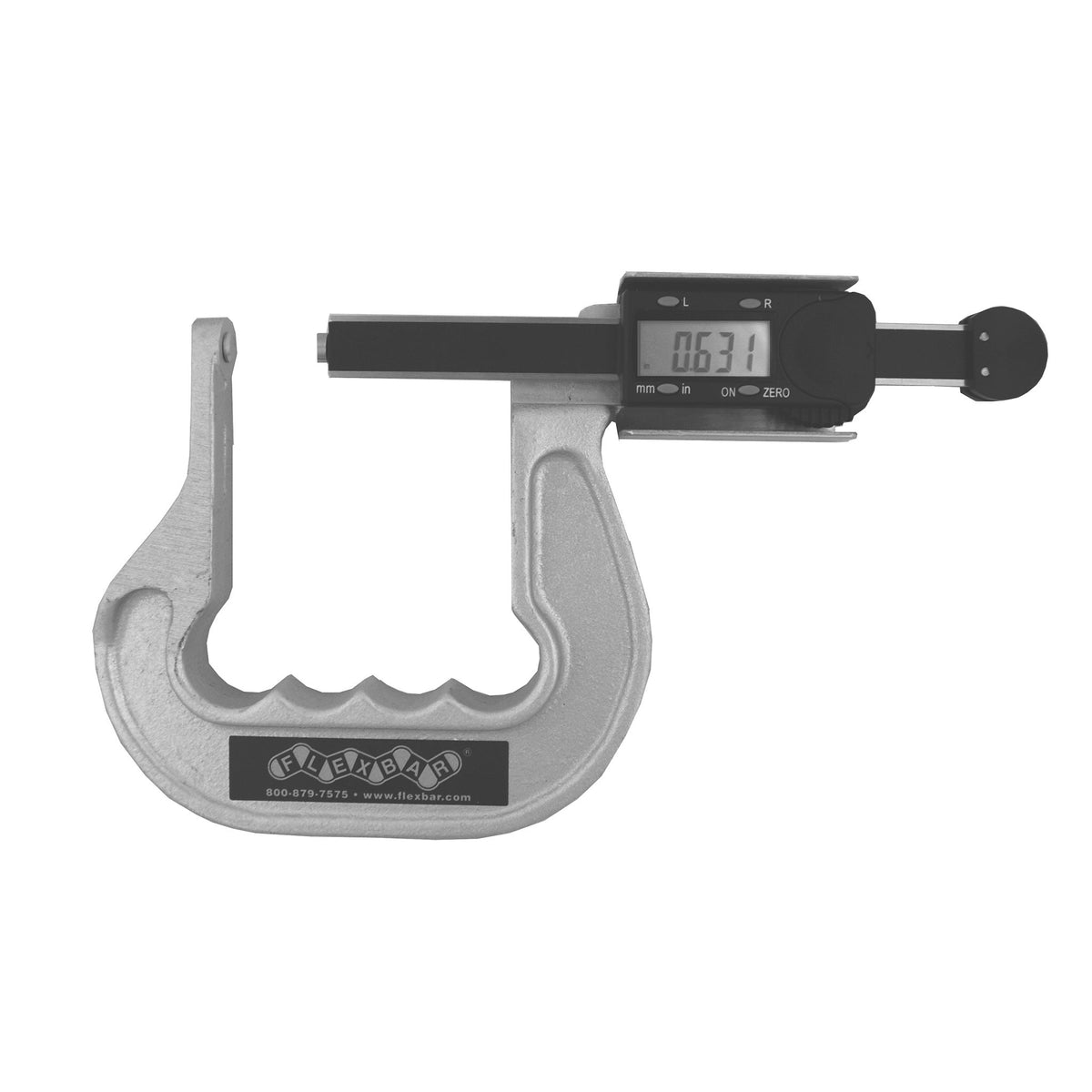

Flexbar 14785 | Digital Deep Throat Micrometer, Dual Flat Anvils | 0-2.5 in, 3.3 in Depth
Flexbar 14785 is the digital deep throat micrometer with dual flat anvils. It measures up to 2.5 in / 63.5 mm with a maximum measuring depth of 3.3 in / 83.8 mm, and accepts a range of interchangeable tips such as points, balls and probes. A dual hold/storage function (L and R) keeps two readings.
Key features
- Fast sliding scale for quick measurements
- Extra-large digital display
- Ergonomic finger grip
- Cast aluminium frame
- IP54 protection against moisture, oil and dust
Flexbar notes that the range decreases when tip attachments are used. A spec sheet is available from Flexbar.
- Specifications
- Downloads
| Part Number | 14785 |
| Brand | Flexbar |
| Range | 0-2.500 in (63.5 mm) |
| Resolution | .0005 in / .01 mm |
| Accuracy | .001 in / .02 mm |
| Anvils | Dual flat |
| Case | Heavy-duty moulded plastic |
| Protection | IP54 |
| Max. Measuring Depth | 3.3 in (83.8 mm) |
| Frame | Cast aluminium |
| Functions | Inch/metric, zero setting, auto shut-off |
