Flexbar 15870 | IPD Internal Pitch Diameter Gaging System | 7-1/2 to 18 in Range
Part Number : 15870

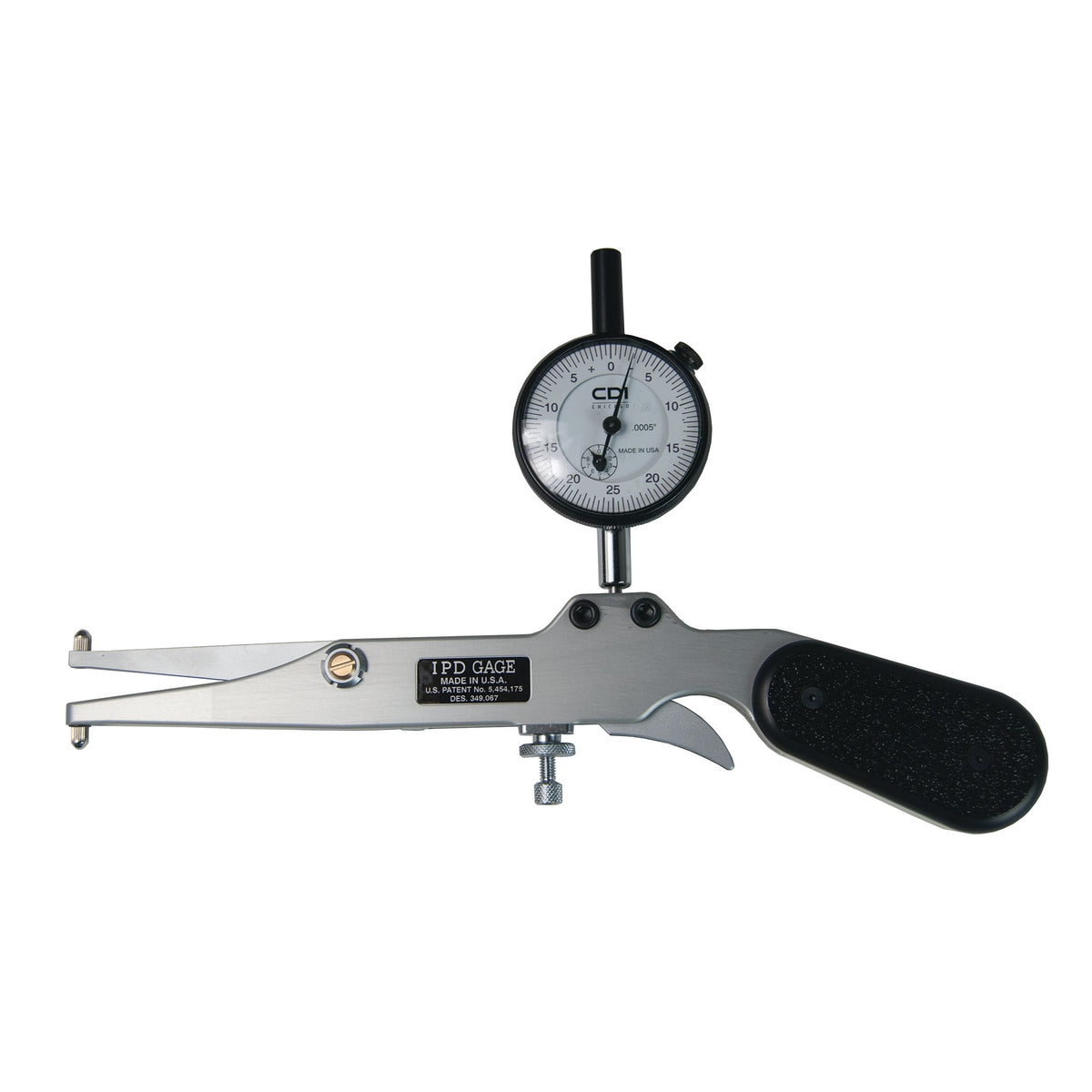

Flexbar 15870 IPD Gaging System is an internal gage for pitch diameters of internal threads, and also for bores, grooves, recesses and internal gears. With the included adapter, extensions and contact points it measures internal threads and bores from 7-1/2 in to 18 in, and the supplied software calculates the data needed to inspect a specific internal thread without a master gage, compensating for ball diameter variation and lead angle. The gage is set with a micrometer or gage blocks; it is supplied with standard points for ID measurement, while carbide ball contact points are optional.
Key features
- Measures internal threads and bores from 7-1/2 to 18 in
- High-precision pivot bearings; repeatability of .0002 in or less
- Adjustable contact pressure
- Software supports UN and metric threads plus user-defined thread angle and starts (e.g. ACME, Whitworth, multi-start)

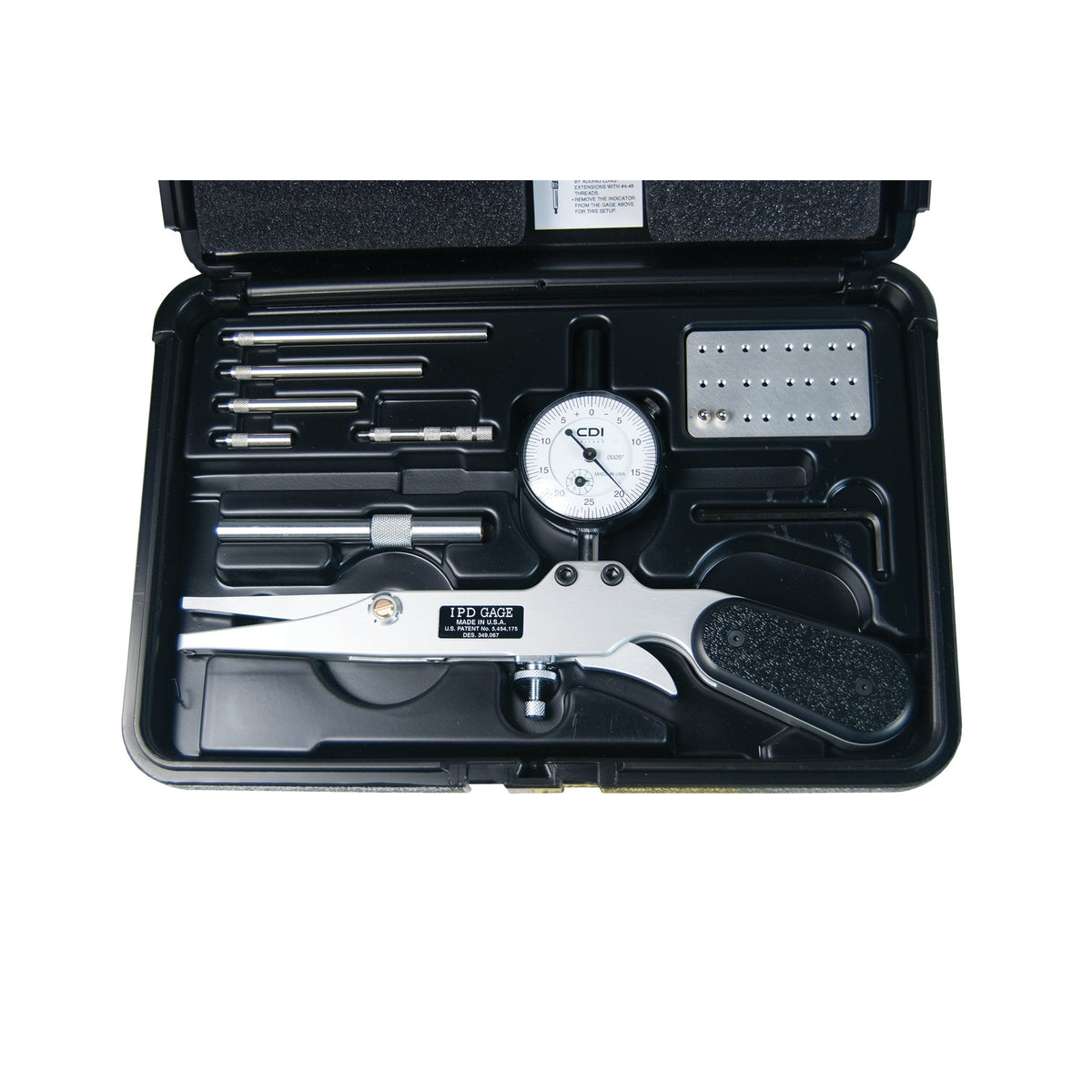

- Includes internal gage, 1 in travel indicator, indicator adapter, 8 extensions (1/4 to 4 in), tip organiser, 2 standard 1/4 in points, Allen wrench, fitted case, software and manual
- Carbide ball contact points optional, not included
For pricing, please contact our experts.
