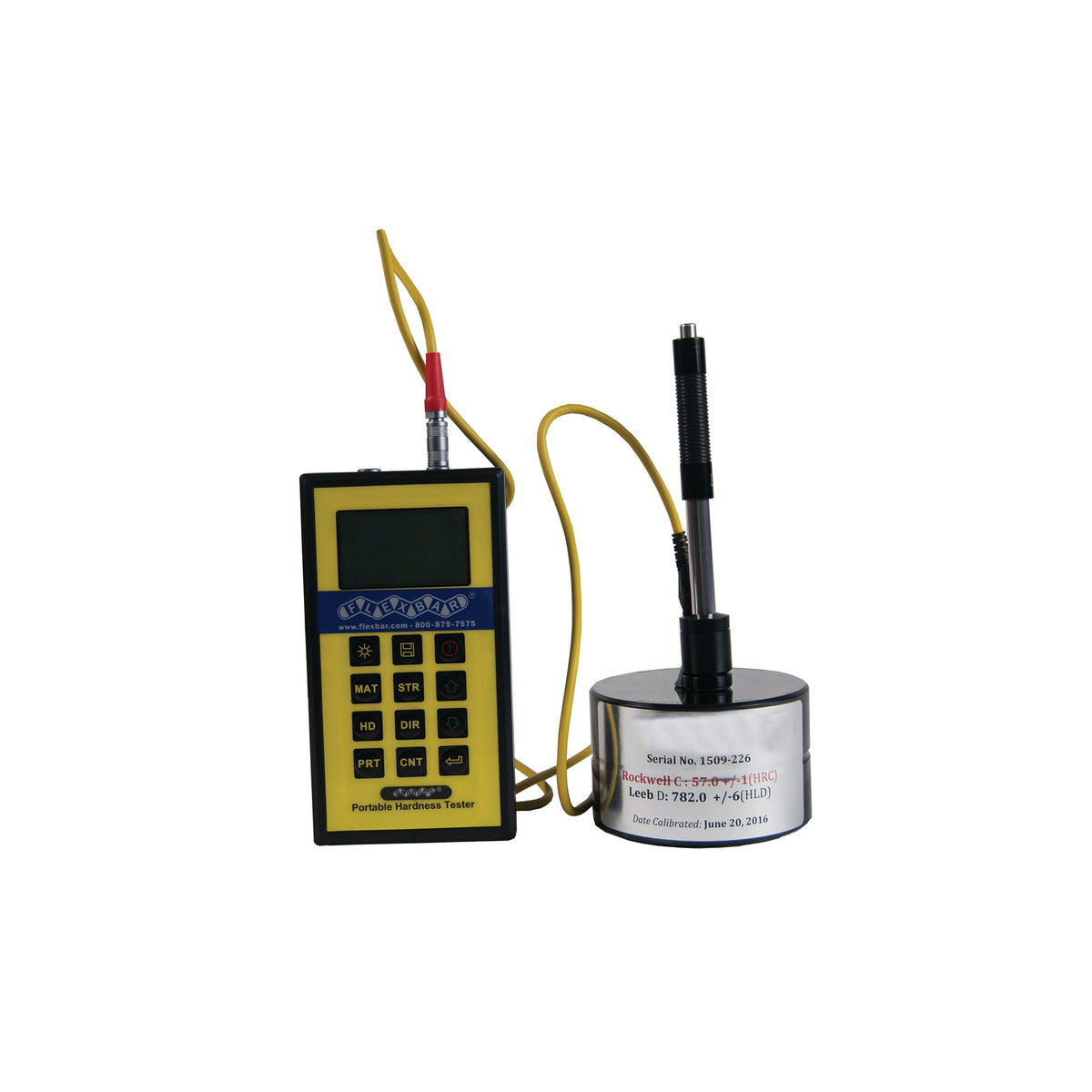

Flexbar 15970 | Portable Digital Hardness Tester | Type D Impact Device
Flexbar 15970 is a compact portable hardness tester for metals, using a type D impact device with a tungsten carbide test tip. It converts results automatically to Vickers, Brinell, Rockwell and Shore values and gives a statistical mean. The impact direction can be set for any angle, including upside down. The kit comprises the tester, a test block, a fitted case and instructions.
Key features
- Memory for up to 2000 locations, printable through the RS232 output
- Impact direction selectable for any angle
- Automatic statistical mean value
- Maximum sample hardness 980 HV
- Runs on 2 AAA batteries (supplied)
- Specifications
- Downloads
| Part Number | 15970 |
| Brand | Flexbar |
| Hardness Scales | Vickers, Brinell, Rockwell, Shore |
| Impact Device | D |
| Test Tip | Tungsten carbide |
| Max. Sample Hardness | 980 HV |
| Min. Sample Thickness | 5 mm (3 mm coupled) |
| Min. Sample Weight | 5 kg (to 0.1 kg coupled on solid support) |
| Min. Layer Thickness | 0.8 mm (0.031 in) |
| Min. Curved Surface Radius | 30 mm (11 mm with support rings) |
| Memory | 2000 locations |
| Output | RS232 |
| Weight | 230 g |
| Dimensions | 108 x 62 x 25 mm (4.25×2.44×0.984 in) |
