Flexbar 16044 | Belt Sanding Comparator | 6 specimens, Non-Calibrated

Name: Flexbar 16044 | Belt Sanding Comparator | 6 specimens, Non-Calibrated
Brand: FLEXBAR
SKU: 16044
Availability: InStock

Part Number : 16044

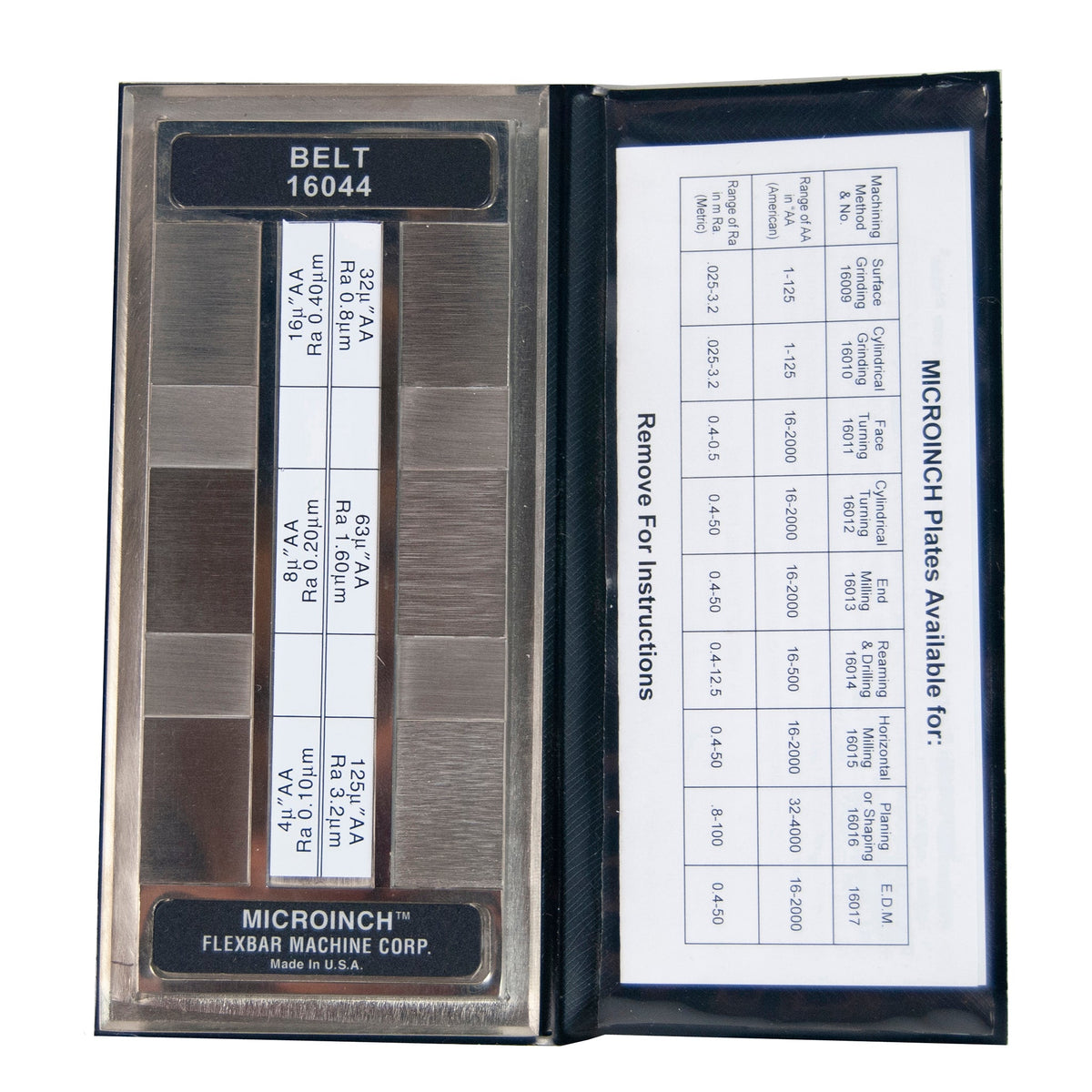

Flexbar 16044 is the non-calibrated belt sanding comparator: a solid electroformed nickel plate with six belt-sanded reference specimens covering 4 to 125 µin AA (0.10 to 3.2 µm Ra). It is used to judge and specify the finish of belt-sanded parts by comparison.

Key features

Six specimens: 4, 8, 16, 32, 63 and 125 µin AA
N numbers N3 to N8
Each specimen 16 x 25 mm (5/8 x 1 in)
Plate 52 x 128 mm (2 1/16 x 5 in), light enough for a pocket
Supplied in a plastic wallet

Availability: in stock

Specifications

Part Number	16044
Brand	Flexbar
Machining Method	Belt Sanding
Calibration	Non-Calibrated
Specimens	6
Range Ra	0.10-3.2 µm
Range AA	4-125 µin
N Numbers	N3-N8
Specimen Size	16 x 25 mm (5/8 x 1 in)
Plate Size	52 x 128 mm (2 1/16 x 5 in)
Material	Solid electroformed nickel
Supplied In	Plastic wallet
