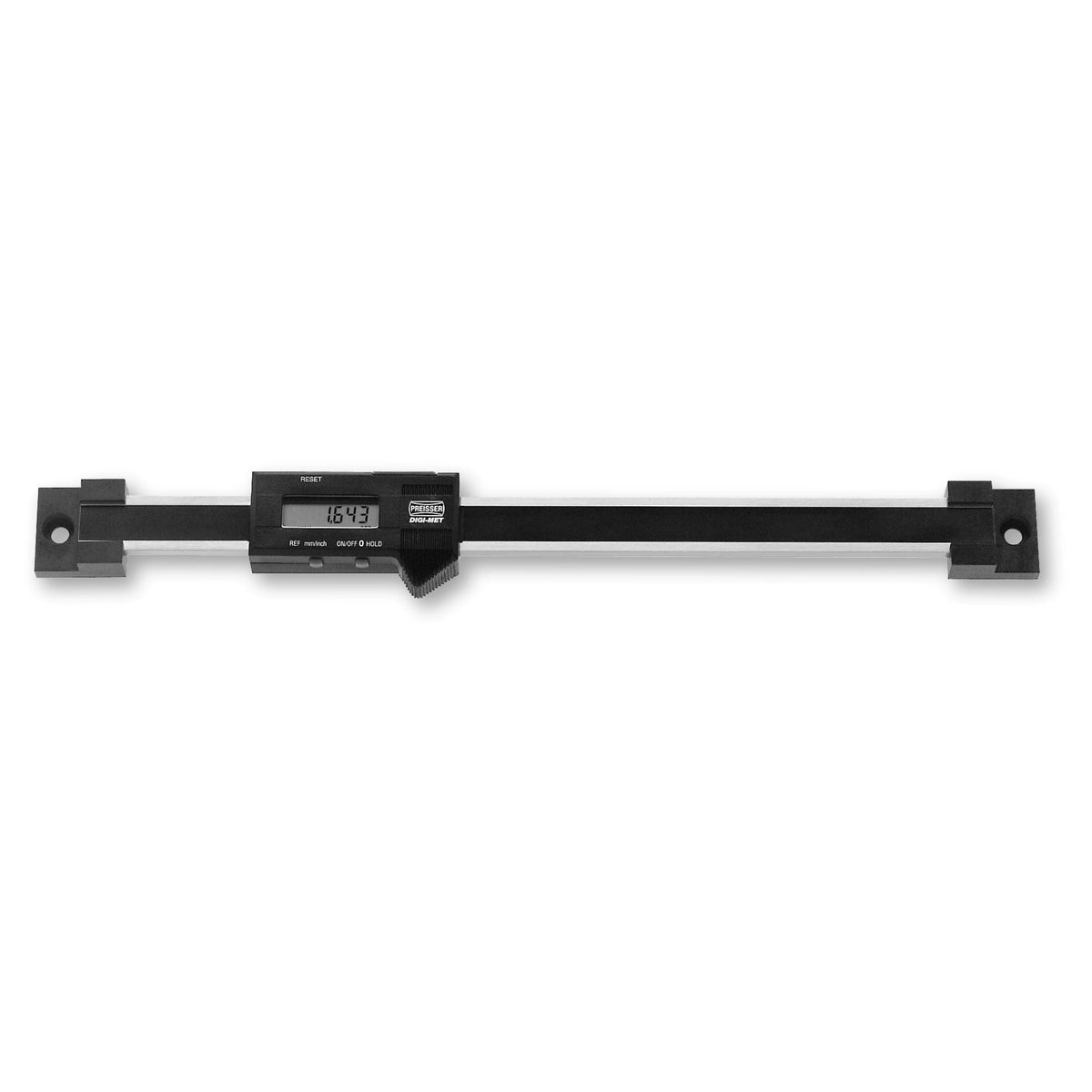

Flexbar 17871 | Digi-Met Electronic Horizontal Scale | 6 in / 150 mm
Flexbar 17871 is the 6 in / 150 mm Digi-Met electronic horizontal scale, used to update machines with an electronic display. Maximum measuring speed is 1.5 m/s and all scales are supplied with a set of hold-down holders.
Key features
- Accuracy according to DIN 862
- Resolution .0005 in / .01 mm; repeatability 10 µm / .0005 in
- ON/OFF switch, zero-setting at any position and mm/inch conversion
- HOLD and PRESET functions
- RS 232 opto-electronic data output
- Specifications
| Part Number | 17871 |
| Brand | Flexbar |
| Measuring Range | 6 in / 150 mm |
| Accuracy | DIN 862 |
| Resolution | .0005 in / .01 mm |
| Repeatability | 10 µm / .0005 in |
| Max. Measuring Speed | 1.5 m/s |
| Beam Cross Section | .79 x .20 in |
| Data Output | RS 232 opto-electronic |
| Supplied With | Set of hold-down holders |
