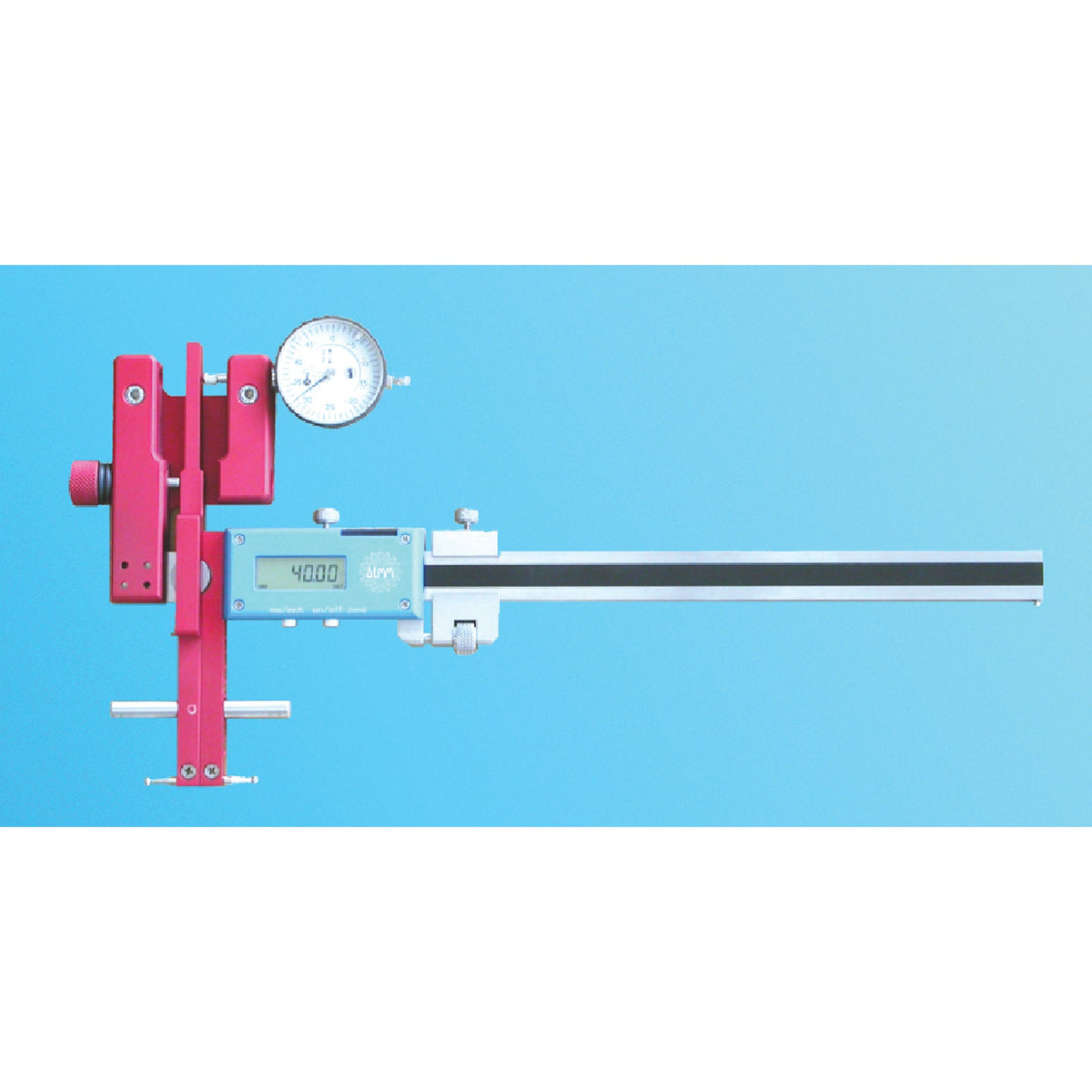

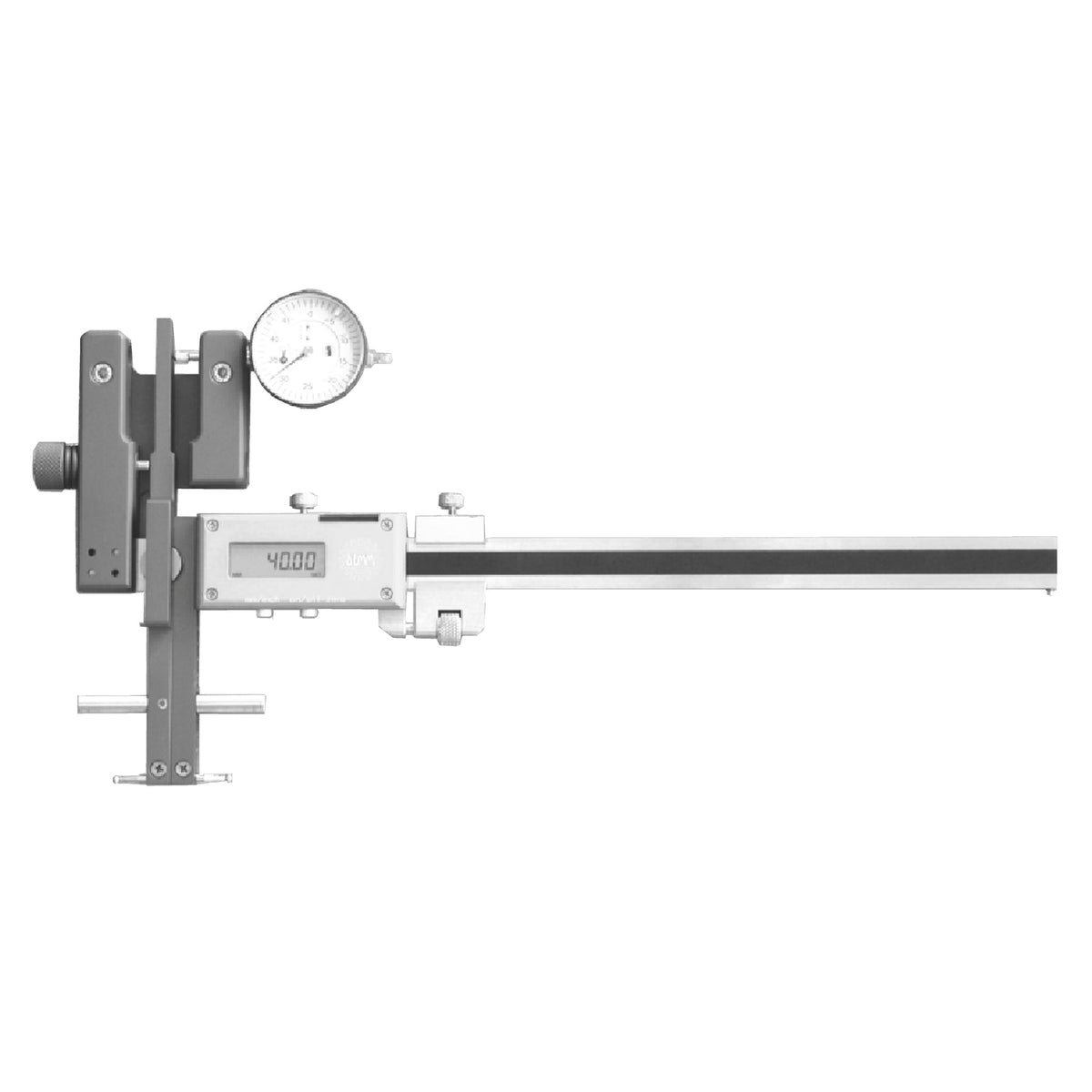

Flexbar 19381 | DIGI-BASCOM Universal Measuring Tool | 24-300 mm / .95-12 in
Flexbar 19381 is the 24-300 mm (.95-12 in) size of the DIGI-BASCOM, a multi-use sliding gauge with a micrometric adjustment carriage. This size uses a 22 x 5 mm guide section. It can be set up for inside or outside measurement of diameters, gear teeth, threads, grooves and V-guides, and is zeroed with any ring gauge within its range.
Key features
- Capacity 24-300 mm / .95-12 in, guide section 22 x 5 mm
- Graduations .0005 in / 0.01 mm; tolerance .001 in / 0.02 mm
- Sylvac digital electronic scale with RS232 output
- Interchangeable ball or point contact ends
- Two cylindrical supports fit the jaws at 5 mm intervals; special support for the moveable jaw included
- Special alloy and stainless steel construction, fitted wooden case
- Specifications
| Part Number | 19381 |
| Brand | Flexbar |
| Capacity (mm) | 24-300 mm |
| Capacity (inch) | .95-12 in |
| Guide Section | 22 x 5 mm (0.866×0.197 in) |
| Graduations | .0005 in / 0.01 mm |
| Material | Special alloy and stainless steel |
| Scale | Sylvac digital electronic |
| Tolerance | .001 in / 0.02 mm |
| Case | Fitted wooden case |
| Output | RS232 |
