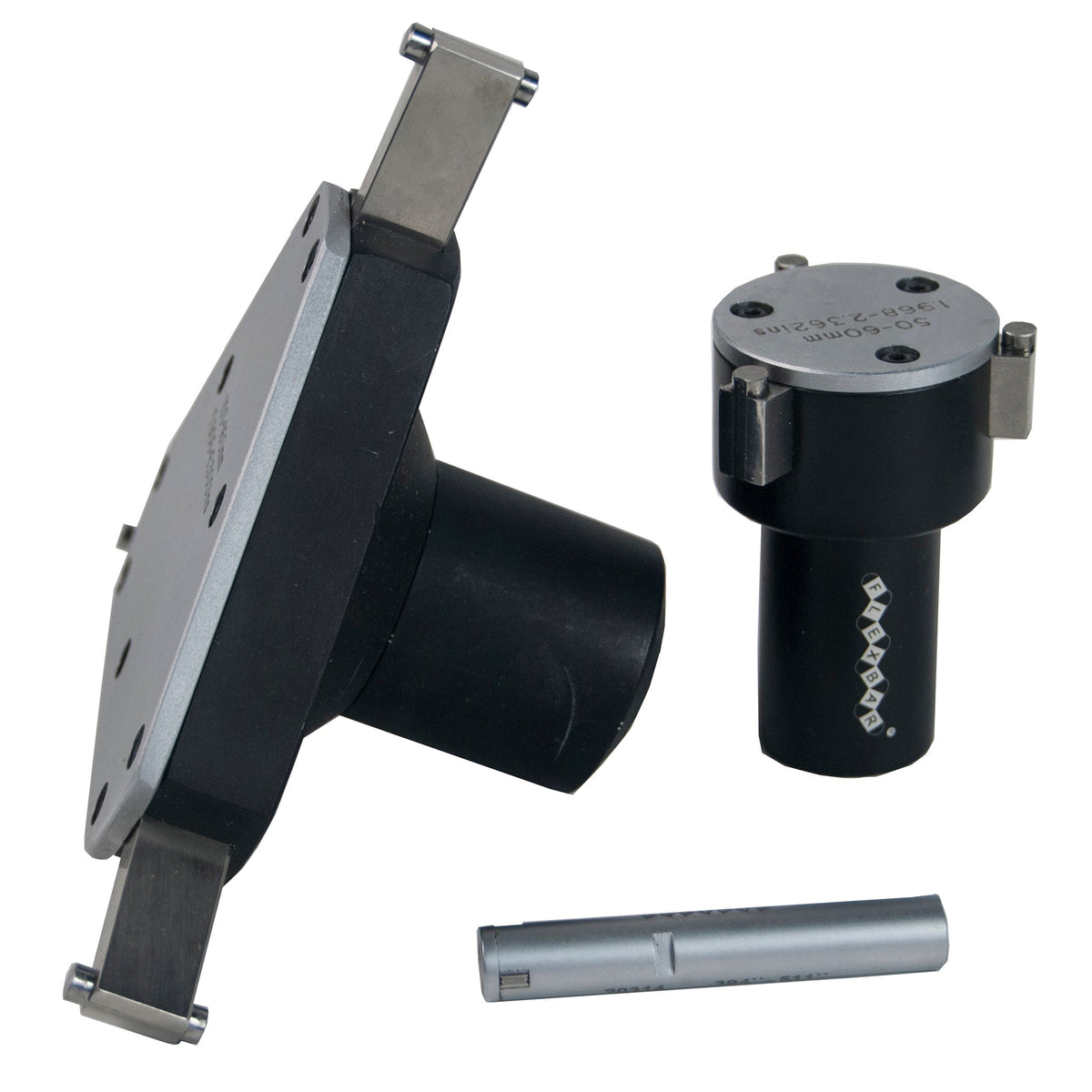

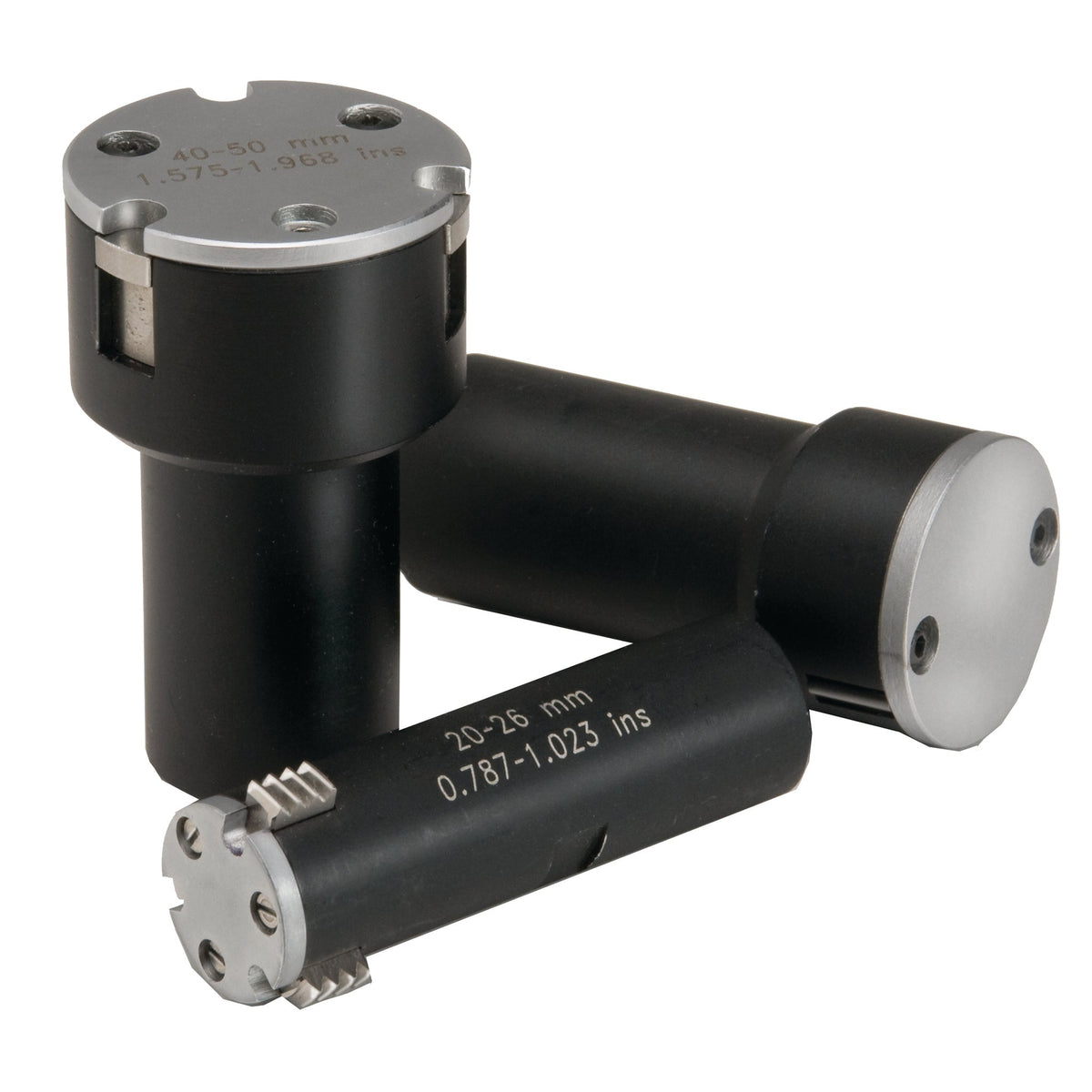

Flexbar 20324 | Triga-Bore 3-Point Gage Head | 3.150-3.543 in (80-90 mm)
Measuring 80-90 mm (3.150-3.543 in), the Flexbar 20324 is an interchangeable 3-point head for the Triga-Bore system. Use it on a Triga-Bore handle rated for .630-7.874 in (16-200 mm) (models 20309 pistol grip or 20311 lever); extension 20349 covers this head size. For 3.150-3.543 in bores, fixed anvils help remove operator error, while the spherical head shape allows only one contact point per anvil on the bore wall, an advantage in deep bores.
Key features
- Measuring range: 3.150-3.543 in (80-90 mm)
- Fixed anvils
- Spherical head, one contact point per anvil
- Fits Triga-Bore handles for .630-7.874 in (16-200 mm)
- Matching extension: 20349
- Specifications
- Downloads
| Part Number | 20324 |
| Brand | Flexbar |
| System | Triga-Bore |
| Measuring Range (in) | 3.150-3.543 in |
| Measuring Range (mm) | 80-90 mm |
| Contact | 3-point, fixed anvils |
| Head Shape | Spherical |
| Compatible Handles | 20309 pistol grip / 20311 lever |
| Matching Extension | 20349 |

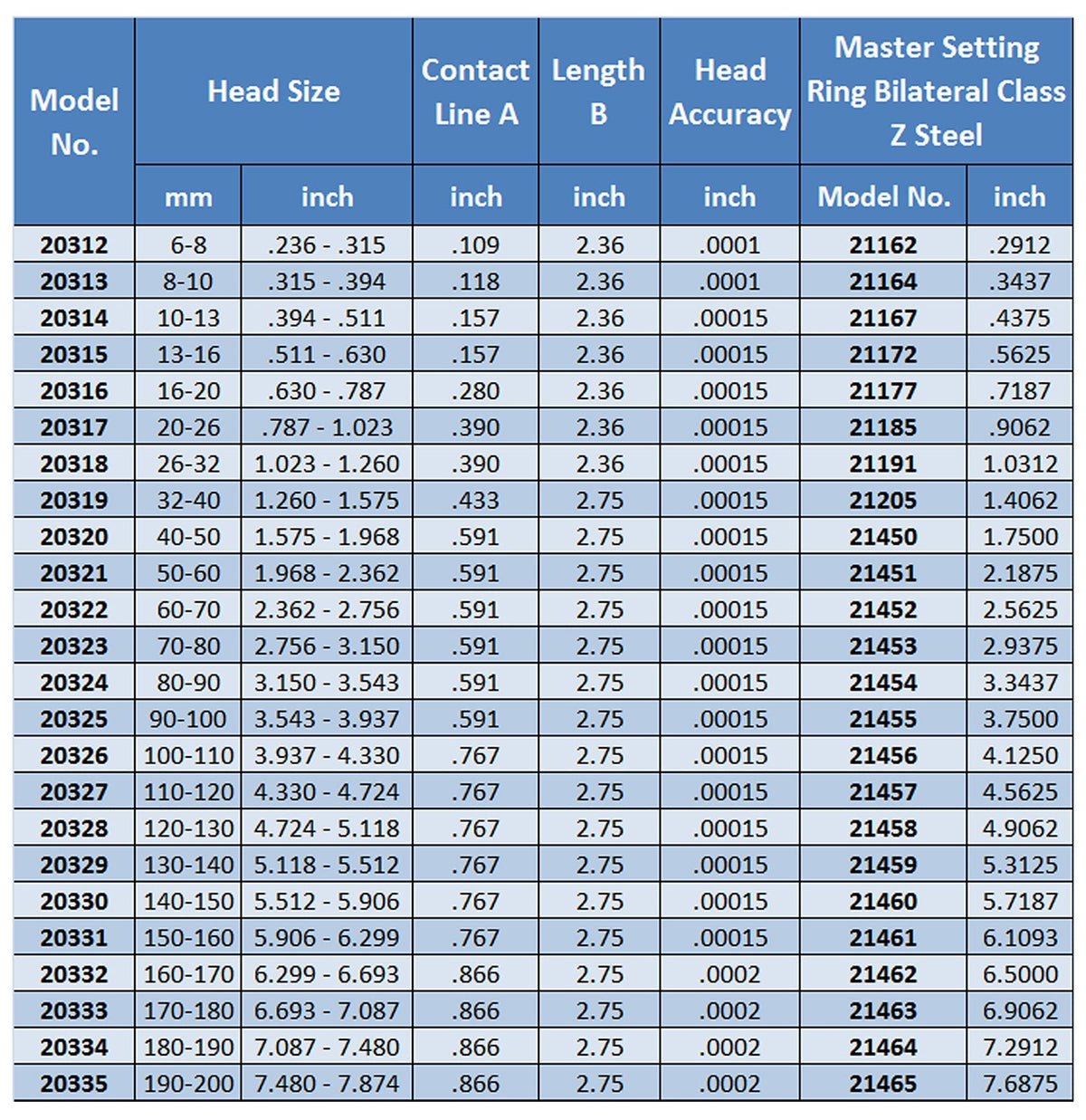

Other models in this series
