Flexbar VBS-1030 | Long Bore Inspection Camera System | 30 m cable

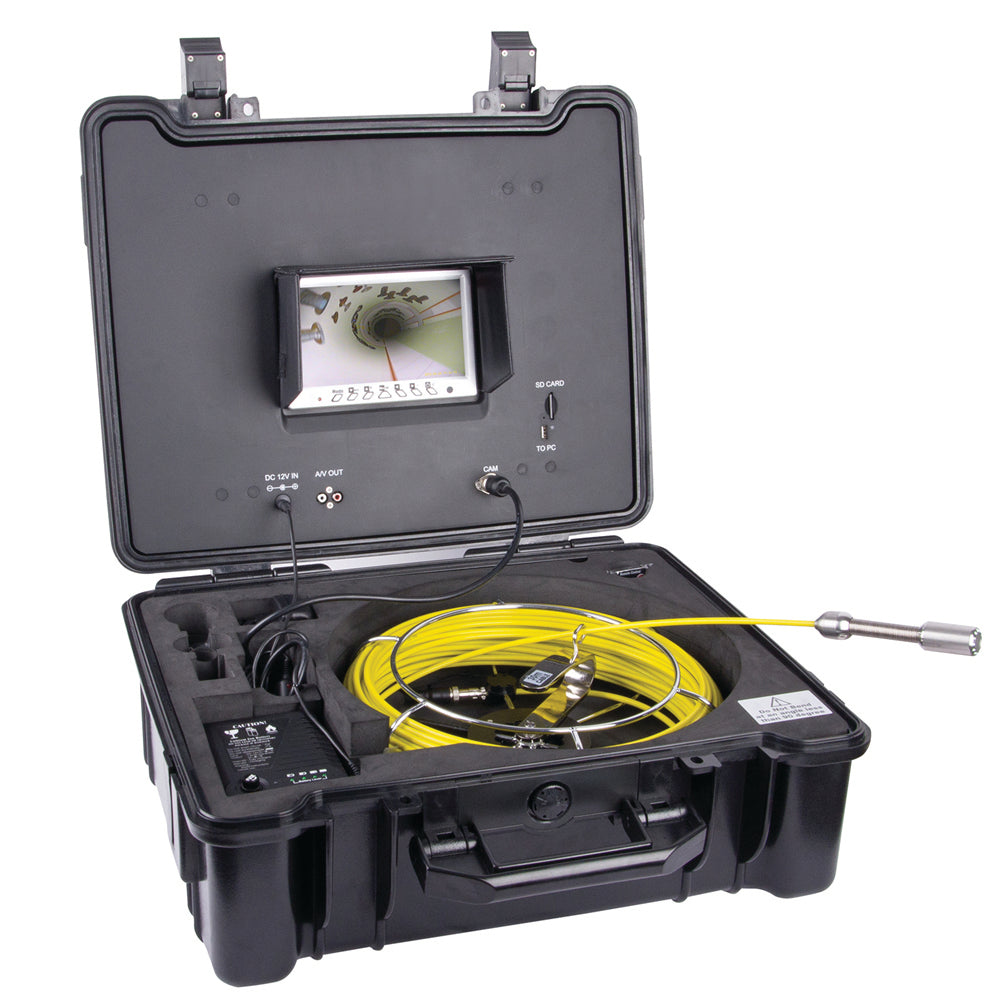

Flexbar VBS-1030 is the 30 m cable version of the Long Bore Inspection Camera System, the longest of the three lengths listed. The kit combines a 14 mm wide-angle camera, a cable reel that rotates in the case and a 7 in TFT LCD monitor with DVR.
Key features
- 1/4 in CMOS camera, 720 x 576 resolution

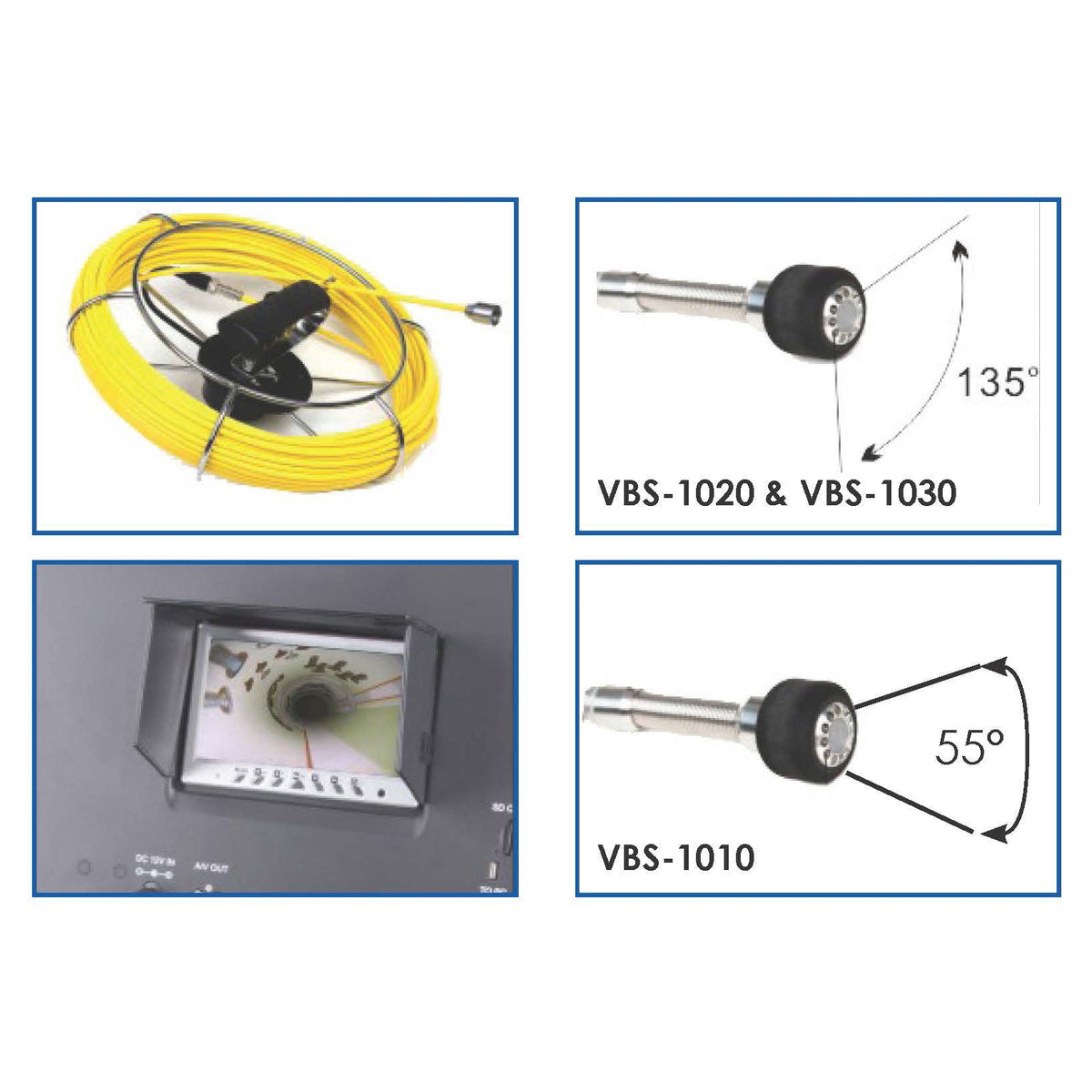

- 55° wide vision angle
- 14 mm camera diameter, waterproof up to 10 m
- Sapphire glass lens cover with 6 white LEDs
- Fiberglass rod cable with stainless steel; cable reel rotates in the case
- 7 in TFT LCD monitor with DVR and rechargeable 6600 mAh Li battery
- Specifications
- Downloads
| Part Number | VBS-1030 |
| Brand | Flexbar |
| Cable Length | 30 m |
| Camera | 1/4 in CMOS, 720 x 576 |
| Vision Angle | 55° |
| Camera Diameter | 14 mm |
| Waterproof | Up to 10 m |
| Lighting | 6 white LEDs |
| Lens Cover | Sapphire glass |
| Monitor | 7 in TFT LCD with DVR |
| Battery | Rechargeable Li, 6600 mAh |
| Case | Waterproof ABS suitcase |
