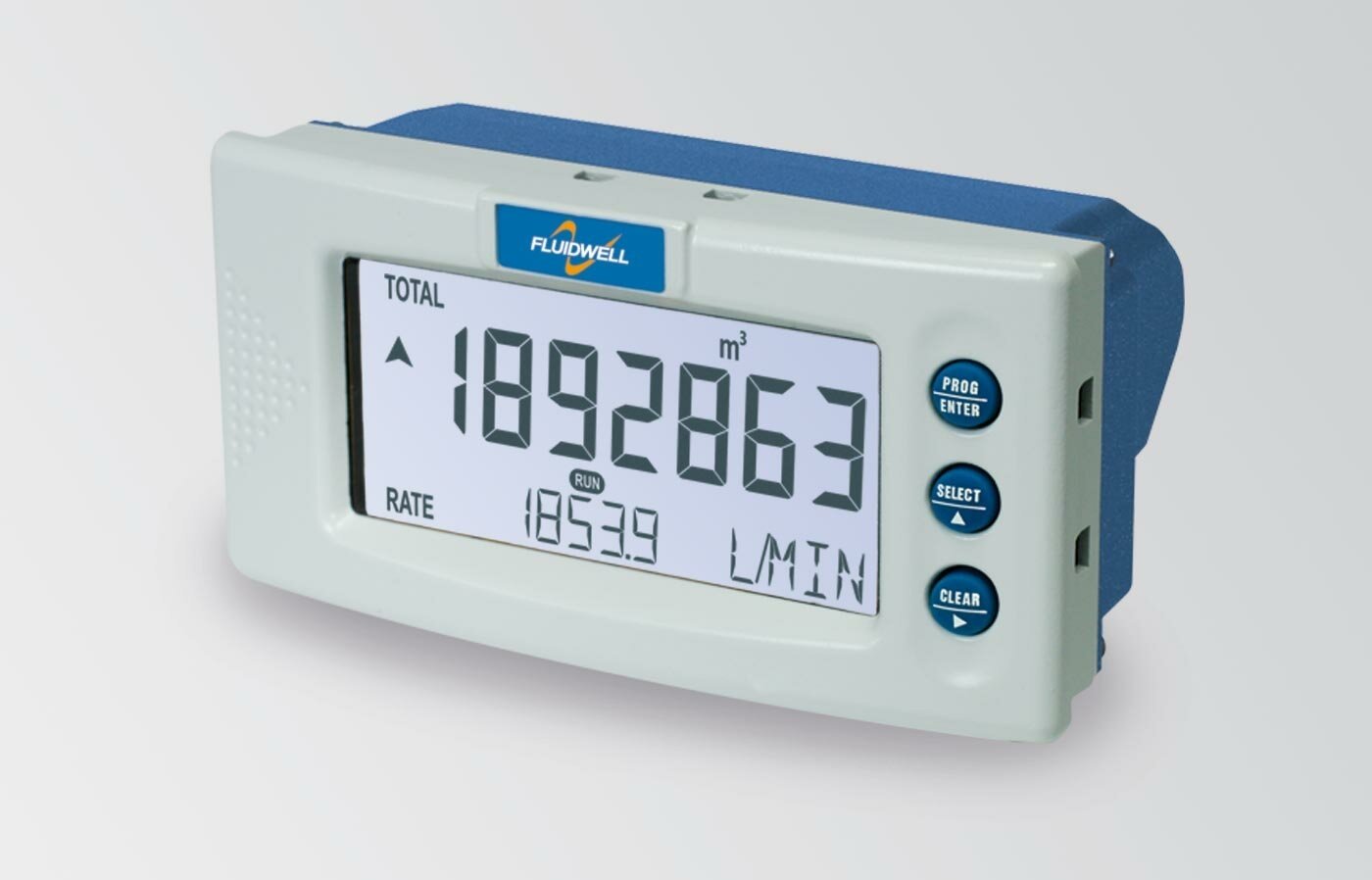

FLUIDWELL D012 DIN Panel mount - Flow rate Indicator / Totalizer | Displays flow rate and total simultaneously | Ambient temperature -40°C up to +80°C (-40°F up to 176°F).
The D012 panel mount indicator shows the cumulative total, real flow rate, and total amount. Two CLEAR button presses will return the sum to zero. However, it is not possible to reset the eleven-digit cumulative total to zero. It is easy to choose the measuring unit to be shown using an alpha-numerical configuration menu. An easy-to-use and weatherproof solution that eliminates the need for sticky labels to be placed outside the enclosure!

Free UAE shipping available
- Specifications
- Features
- Downloads
Input | Flowmeter Inputs Pulse type inputs: Reed-switch, NAMUR, NPN/PNP pulse, Sine wave (coil), active pulse signal. (0)4 " 20mA. 0 " 10V DC. |
Power Supply | Basic: 8 - 30V DC (no real sensor supply). Long life Lithium battery. 4 " 20mA input Loop-powered. 24V AC/DC + sensor supply. 115 " 230V AC + sensor supply. Sensor Supply 1.2 / 3V DC. 8.2, 12 & 24V DC. |
- shows the total, accumulated total, and flow rate.
- Large flow rate or total digits measuring 17 mm (0.67").
- Volumetric or mass engineering units are selectable on the screen.
- the capacity to interpret any kind of flowmeter signal.
- Run totals and settings are automatically backed up.
- From -40°C to +80°C (40°F to 176°F) is the ambient temperature.
- Backlighting with LEDs available.
- Simple setup with readable alphanumeric text.
- Aluminum DIN front panel measuring 144 x 72 mm (5.67" x 2.83") in accordance with IEC 61554 / DIN 43700.
