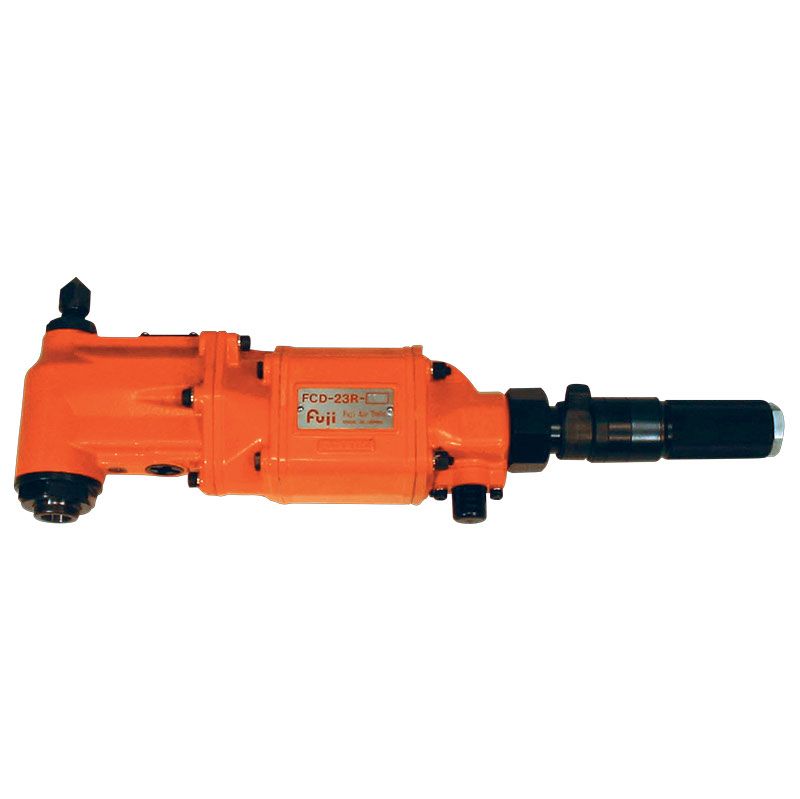

FUJI FCD-23 | Reversible Corner Drill | 22 mm Capacity, MT2/MT3, 80.4 Nm
Part Number : FCD-23
The FUJI FCD-23 is a heavy-duty reversible corner drill with a 22 mm (7/8 in) drilling capacity. It develops 80.4 Nm stall torque at 430 rpm from a 900 W (1.2 hp) motor, and MT#2 and MT#3 sockets suit different shank drill bits. FUJI lists drilling, reaming and tapping of mild steel and cast iron among its uses.
Key features
- Morse taper chuck mount M.T.2 or M.T.3
- Stall torque 80.4 Nm / 59.3 ft.lbf
- Free speed 430 rpm; feed length 35
- Air consumption 25 l/s / 53 cfm
- 1/2 in air inlet; 12.7 mm minimum hose
- Weight 7 to 7.1 kg; roll or self-return throttle
For pricing, please contact our experts.
