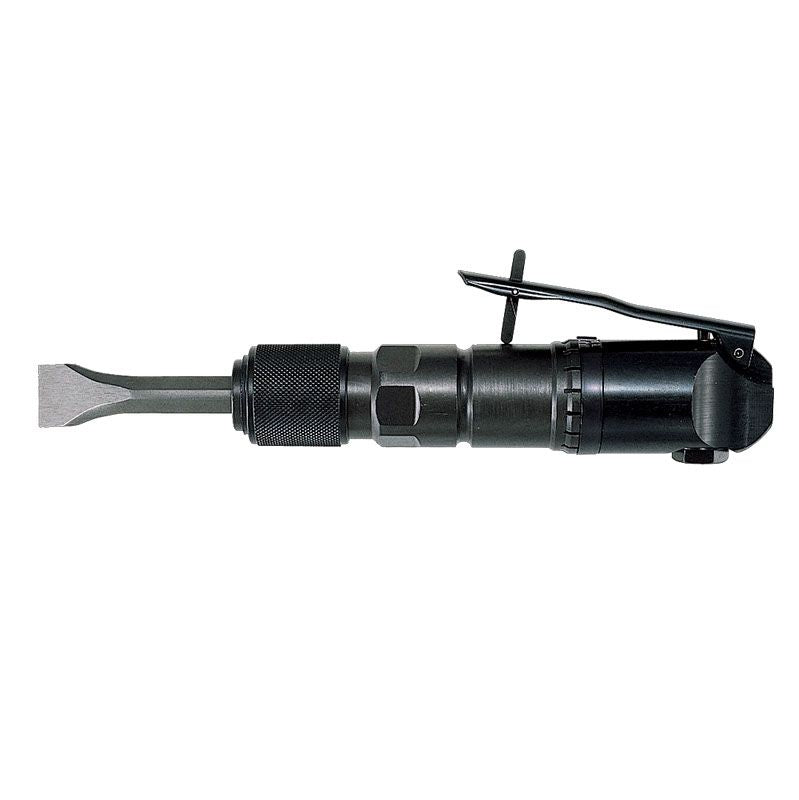

FUJI FCH-25 | Flux Chipper | 3600 bpm, 20 mm Stroke, 25 mm Bore
With a 25 mm bore and 20 mm stroke, the FUJI FCH-25 flux chipper hits at 3600 blows per minute. It handles light chipping, carving, scaling, paint and rust removal and weld flux removal. The tool weighs 1.5 to 1.7 kg and comes with push lever or locking lever throttles.
Key features
- Blows per minute 3600
- Stroke 20 mm / 0.79 in; bore 25 mm
- Round chisel shank
- Air consumption 3 l/s / 6.4 cfm
- 1/4 in NPT air inlet; 8 or 9.5 mm minimum hose
- Length 204 or 239 mm
- Specifications
| Part Number | FCH-25 |
| Brand | FUJI |
| Stroke | 20 mm / 0.79 in |
| Bore Diameter | 25 mm / 0.98 in |
| Weight | 1.7, 1.5 kg / 3.75, 3.31 lb |
| Air Consumption at Free Speed | 3 l/s / 6.4 cfm |
| Chisel Shank | Round |
| Sound Pressure | 97, 96 dB(A) |
| Blow per Minute | 3600 |
| Length (L) | 239, 204 mm / 9.41, 8.03 in |
| Air Inlet Thread Size (in) | 1/4 |
| Air Inlet Thread Type | NPT |
| Product | Flux chipper |
| Vibration (m/s²) | 11.9, < 2.5, 12.3 |
