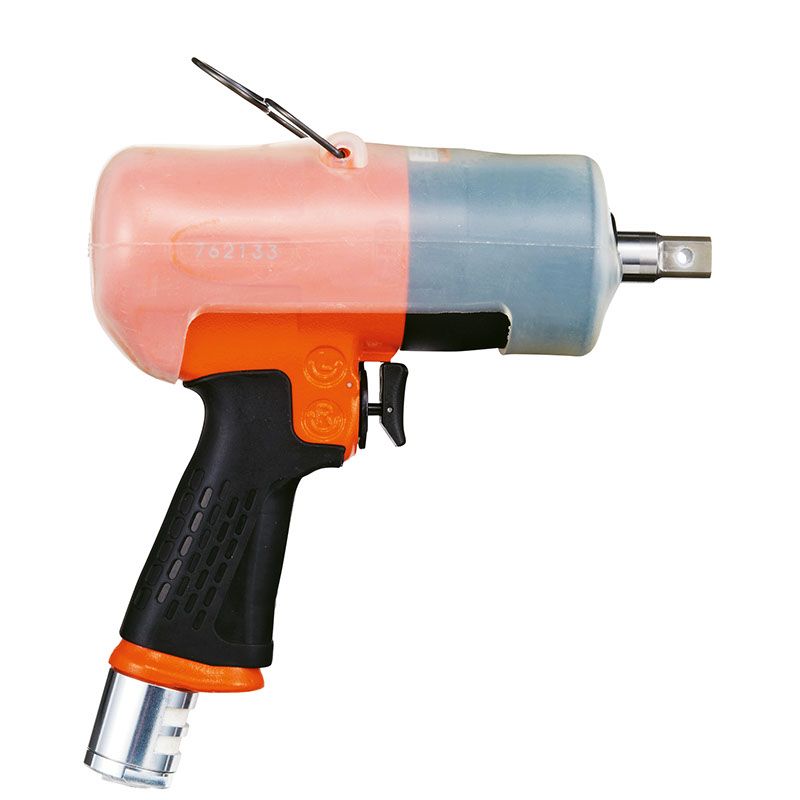

FUJI FL-11 | Non Shut-off Pulse Wrench | 1/2 in Square Drive, 80-136 Nm
The FUJI FL-11 is a non shut-off pulse wrench with a 1/2 in (12.5 mm) square drive and a torque range of 80 to 136 Nm. It runs at 5000 rpm and uses a pistol-type throttle for assembly work. Two spindle types, P-anvil (hole) and BF-anvil (pin), are available for different markets.
Key features
- Forward torque 80 to 136 Nm / 59 to 100 ft.lbf
- Free speed 5000 rpm
- Air consumption 13 l/s / 27 cfm at load
- 1/4 in PT air inlet; 9.5 mm minimum hose
- Weight 1.8 kg; length 184 mm
- Sound pressure 85.3 dB(A)
- Specifications
| Part Number | FL-11 |
| Brand | FUJI |
| Min Torque in Forward | 80 Nm / 59 ft.lbf |
| Max Torque in Forward | 136 Nm / 100 ft.lbf |
| Free Speed | 5000 rpm |
| Air Consumption at Load | 13 l/s / 27 cfm |
| Product | Non shut-off pulse wrench |
| Output Drive Size (in) | 1/2 |
| Spindle Type | Square |
| Output Retainer Type | Hole (P-Anvil), Pin (BF-Anvil) |
| Handle Type | Pistol |
| Weight | 1.8 kg / 3.97 lb |
| Air Inlet Thread Size (in) | 1/4 |
| Output Drive Size (mm) | 12.5 |
