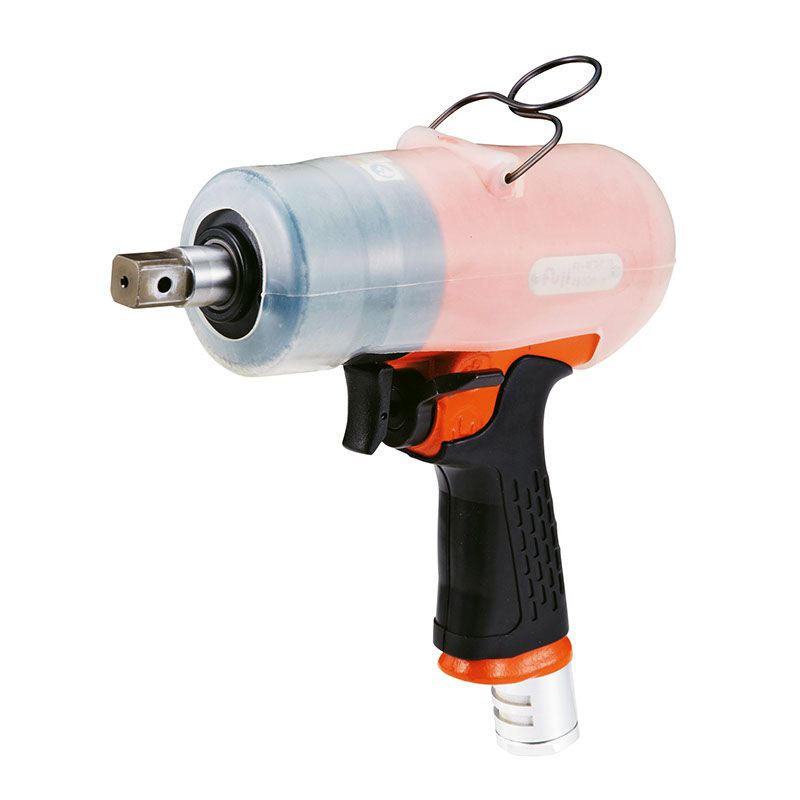

FUJI FL-9 | Non Shut-off Pulse Wrench | 1/2 in Square Drive, 52-96 Nm
Covering 52 to 96 Nm of forward torque, the FUJI FL-9 non shut-off pulse wrench has a 1/2 in (12.5 mm) square drive and runs at 4600 rpm. Its pistol-type throttle suits a range of assembly applications. The tool weighs 1.45 kg and is available with P-anvil (hole) or BF-anvil (pin) spindles.
Key features
- Forward torque 52 to 96 Nm / 38.4 to 70.8 ft.lbf
- Free speed 4600 rpm
- Air consumption 11 l/s / 23 cfm at load
- 1/4 in PT inlet; 9.5 mm minimum hose
- Length 173 mm; side to centre 27 mm
- Sound pressure 79.3 dB(A)
- Specifications
| Part Number | FL-9 |
| Brand | FUJI |
| Min Torque in Forward | 52 Nm / 38.4 ft.lbf |
| Max Torque in Forward | 96 Nm / 70.8 ft.lbf |
| Free Speed | 4600 rpm |
| Air Consumption at Load | 11 l/s / 23 cfm |
| Product | Non shut-off pulse wrench |
| Output Drive Size (in) | 1/2 |
| Spindle Type | Square |
| Output Retainer Type | Hole (P-Anvil), Pin (BF-Anvil) |
| Handle Type | Pistol |
| Weight | 1.45 kg / 3.2 lb |
| Air Inlet Thread Size (in) | 1/4 |
| Output Drive Size (mm) | 12.5 |
