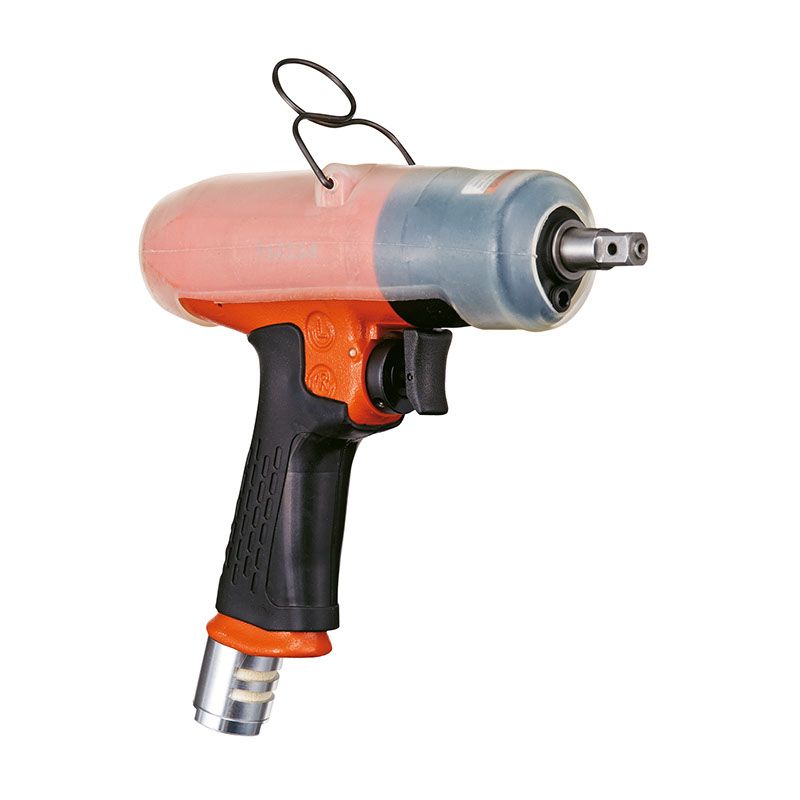

FUJI FLT-5 | Shut-off Pulse Wrench | 11-24 Nm, 3/8 in Square or 1/4 in Hex
FUJI's FLT-5 shut-off pulse wrench covers forward torque from 11 Nm up to 24 Nm for controlled bolt and nut tightening. Free speed is 6500 or 6600 rpm, and the series comes in pistol and straight-handle forms. Buyers can choose a square drive or a hex bit shank output.
Key features
- Maximum forward torque of 24, 22 or 20 Nm by version
- Air consumption at load: 7.5 or 6 l/s (15 or 12 cfm)
- 3/8 in square or 1/4 in hex output with pin, hole or bit-shank retainer
- Sound pressure of 79.1 to 79.9 dB(A)
- Works with a 6.3 mm minimum hose over 5 m
- Specifications
| Part Number | FLT-5 |
| Brand | FUJI |
| Min Torque in Forward | 11 Nm / 8.1 ft.lbf |
| Max Torque in Forward | 24, 22, 20 Nm / 17.7, 16.2, 14.8 ft.lbf |
| Free Speed | 6500, 6600 rpm |
| Air Consumption at Load | 7.5, 6 l/s / 15, 12 cfm |
| Product | Shut-off pulse wrench |
| Output Drive Size (in) | 3/8, 1/4 |
| Spindle Type | Square, Hexagonal |
| Output Retainer Type | Pin (BF-Anvil), Bit Shank (Hex), Hole (P-Anvil) |
| Handle Type | Pistol, Straight handle |
| Weight | 0.97, 0.88 kg / 2.14, 1.94 lb |
| Air Inlet Thread Size (in) | 1/4 |
| Air Inlet Thread Type | PT, NPT |
