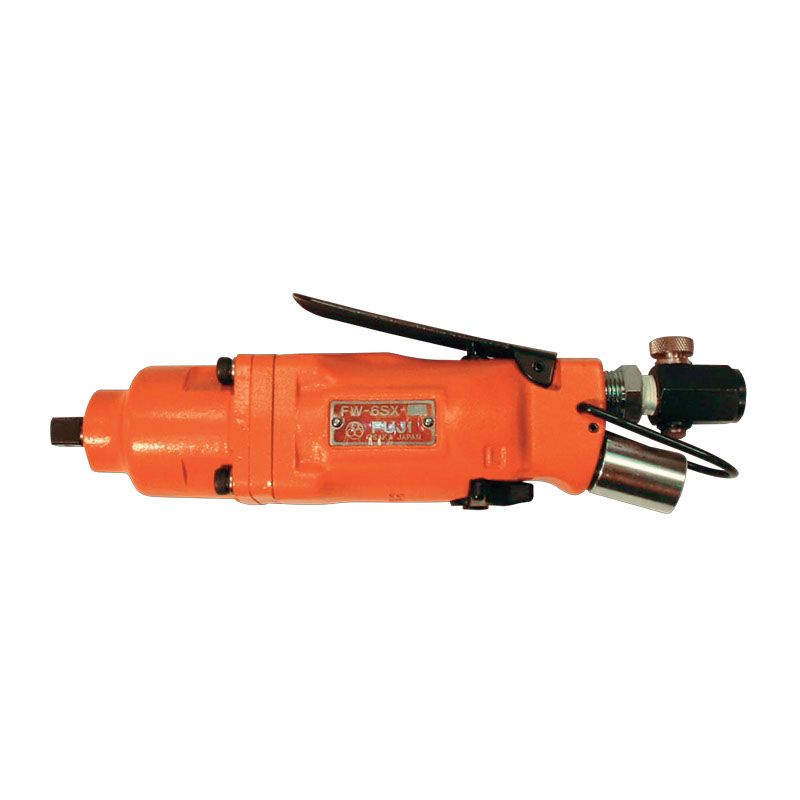

FUJI FW-6SX | Straight Impact Wrench | 3/8 in Square Drive, 10-23 Nm, Straight
The FUJI FW-6SX is a straight 3/8 in impact wrench with a double hammer clutch, recommended for 10 to 23 Nm working torque. Metal housing and motor support durability, and it runs at 10000 rpm. It runs from a 1/4 in PT or NPT inlet, uses 5 l/s (10 cfm) at load and needs a 9.5 mm minimum hose.
Key features
- Reverse torque of 25 or 28 Nm
- Flat button and pin-hole anvil options
- Length 223 mm; weight 1.1 kg
- Vibration rated below 2.5 m/s²
- Sound pressure 95 dB(A)
- Sound power 106 dB(A)
- Specifications
| Part Number | FW-6SX |
| Brand | FUJI |
| Free Speed | 10000 rpm |
| Maximum Torque (Reverse) | 28, 25 Nm / 20.7, 18.4 ft.lbf |
| Weight | 1.1 kg / 2.43 lb |
| Output Drive Size (in) | 3/8 |
| Output Drive Type | Sq |
| Max Working Torque Fwd | 23, 21 Nm / 17, 15.5 ft.lbf |
| Min Working Torque Fwd | 10, 8 Nm / 7.4, 5.9 ft.lbf |
| Impact Mechanism | Twin hammer |
| Handle Type | Straight handle |
| Air Consumption at Load | 5 l/s / 10 cfm |
| Product | Impact wrench |
| Air Inlet Thread Size (in) | 1/4 |
