HIKMICRO B11 | Compact Thermal Imaging Camera | 192 × 144, -20 to 550 °C

Name: HIKMICRO B11 | Compact Thermal Imaging Camera | 192 × 144, -20 to 550 °C
Brand: HIKMICRO
SKU: HIKMICRO B11
Price: 1706.00 AED
Availability: InStock

Part Number : HIKMICRO B11

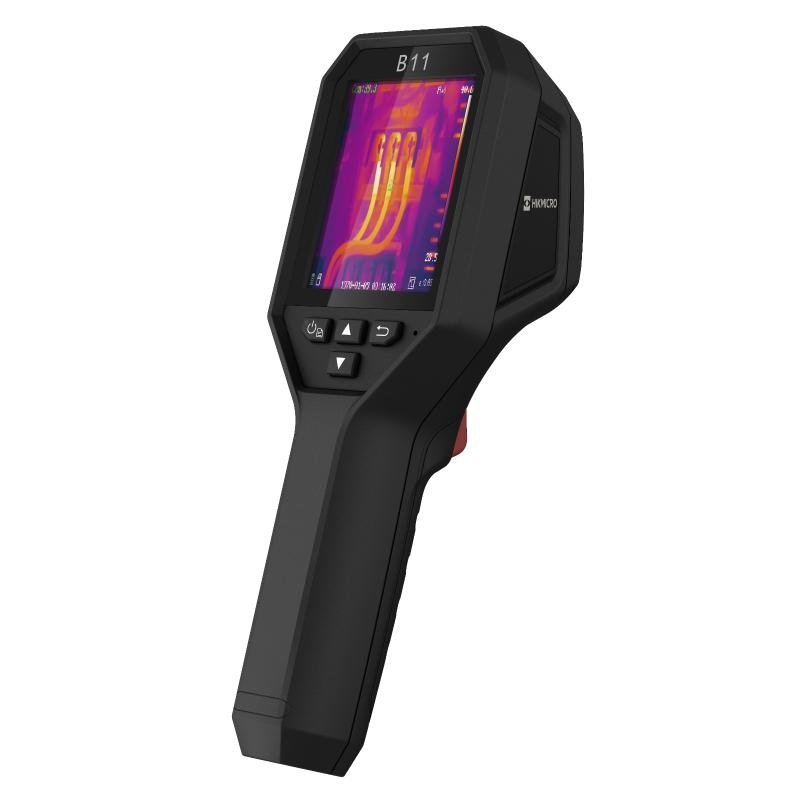

The HIKMICRO B11 is a compact thermal camera with a 192 × 144 detector and a 2MP visual camera, measuring from -20 °C to 550 °C. It helps locate hidden heat-related faults in building, HVAC and automotive inspections.

Key features

192 × 144 IR resolution (27,648 pixels)
Temperature range -20 °C to 550 °C (-4 °F to 1022 °F)
2MP visual camera
3.6 mm F1.0 lens, 37.2° × 27.8° field of view
NETD under 40 mK; minimum focus 0.3 m

Availability: low stock

Free UAE shipping available

Specifications
Features
Downloads

Part Number	HIKMICRO B11
Brand	HIKMICRO
Detector Pitch	12 µm
F-number	F1.0
Field of View (FOV)	27.8° × 37.2°
Focal Length	3.6 mm
Image Frequency	25 Hz
IR Resolution	192 × 144 (27,648 pixels)
Minimum Focus Distance	0.3 m (0.98 ft)
NETD	< 40 mK (@ 25 °C, F#=1.0)
Spatial Resolution (IFOV)	3.3 mrad
Spectral range	7.5 to 14 µm
Temperature Range	-20 °C to 550 °C

Enhanced Thermal Clarity with SuperIR
High Image Quality
4 Images Modes
Full-screen Precise and Wide Temperature Measurement
Wi-Fi Connectivity
Innovative Macro Mode
High Temperature Alarm
Fast Image Frequency
3.2" Color LCD
HIKMICRO Analyzer Software
